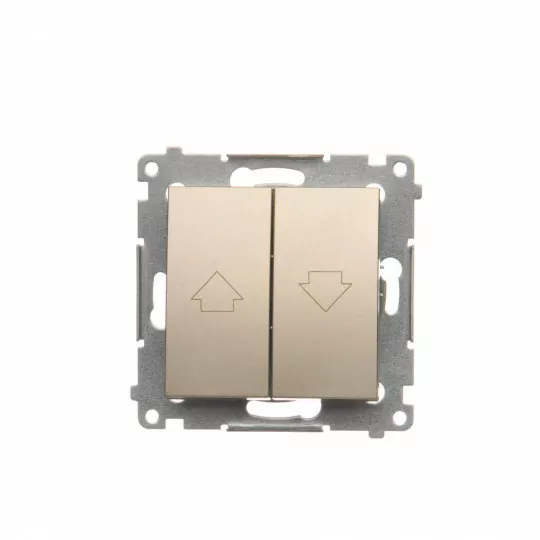

Simon54 Shutter switch DZP1.01/44 gold

Product description

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is gold in color and is made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories

Basic data:

• Series: Simon 54
• Product name/type: single blind button
• Color: golden matte, metalized
• Product type: module
• Rated current: 10 A
• Rated voltage: 250 V
• Type of connection / type of terminal: quick connectors
• IP degree of protection: IP20/IP44
• Notes: For IP44 splash-proof rating, use a gasket under the keys and a frame gasket
• Backlighting: no

Particulars:

• Imprint/Pictogram: symbol "blinds"
• Material type: plastic, PC, halogen-free
• Surface protection: lacquering
• Surface finish: matte
• Mounting method: claws / screws
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 45 mm
• Installation depth: 33 mm
• Number of poles: 1
• Mechanical control: yes
