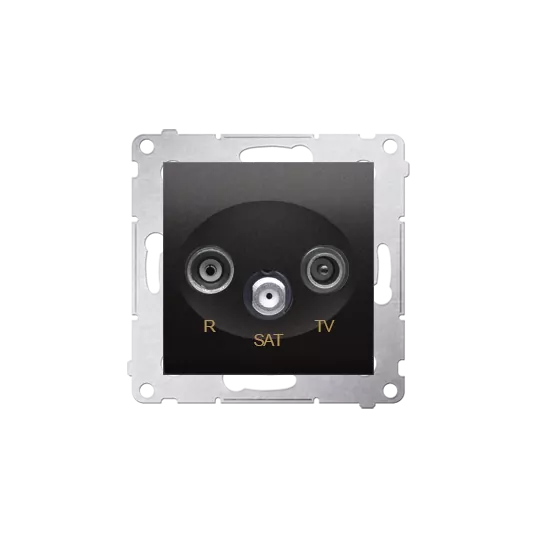

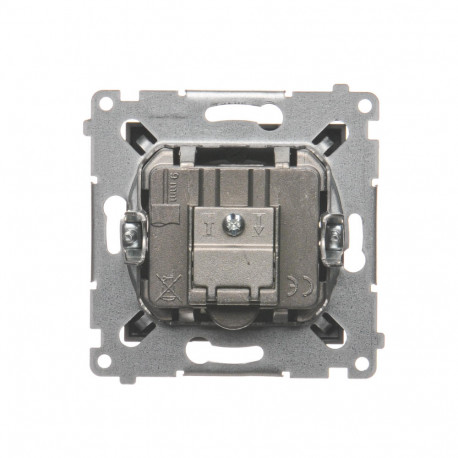

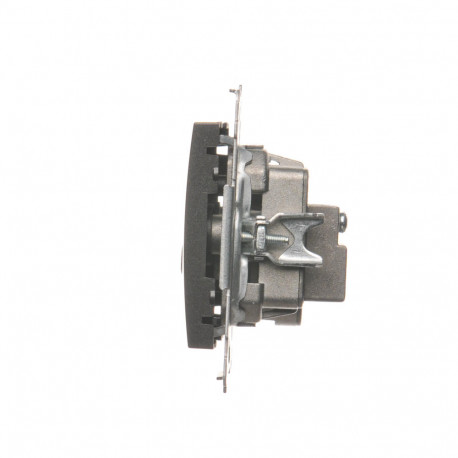

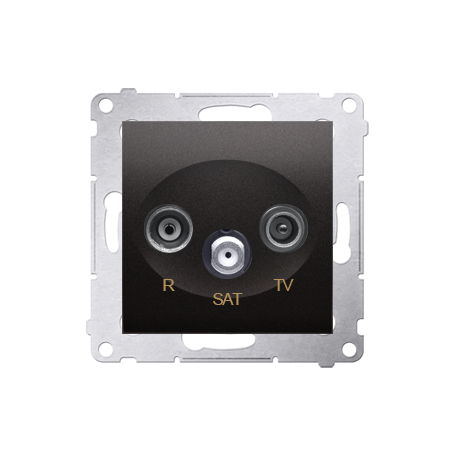

Simon54 RTV-SAT pass-through antenna outlet DASP.01/48 anthracite

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon solutions meet all these requirements while maintaining the aesthetics of the interior. The product is made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. The company's long-standing presence in the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories

Basic data:

• Series: Simon 54
• Product name/type: R-TV-SAT antenna outlet through type
• Color: anthracite, metalized
• Product type: module
• Type of connection / Type of terminal: plug, screw terminals
• IP degree of protection: IP20
• Frequency range: 5-2400 MHz
• Connection attenuation for 860 MHz: 10 dB
• Pass attenuation for 860 MHz: 4 dB
• Junction attenuation for 2150 MHz: 8 dB
• Pass-through attenuation for 2400 MHz: 6 dB

• Imprint/Pictogram: R-TV-SAT
• Material type: plastic, PC, halogen-free
• Surface protection: lacquering
• Surface finish: matte
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 41 mm
• Embedded depth: 29 mm
• Model: pass-through socket
• Socket cover: yes
• Number of outputs: 3
