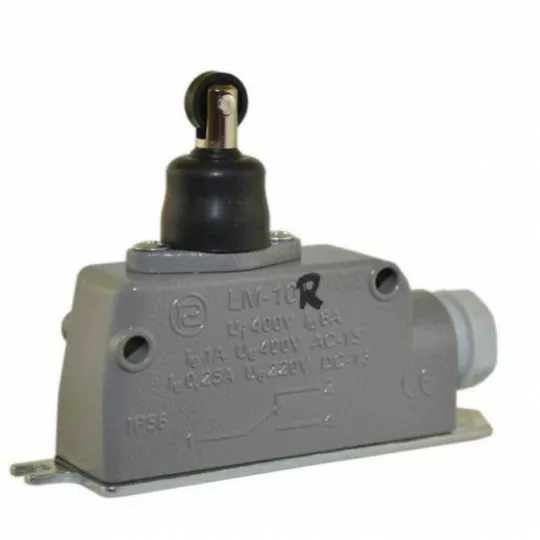

1P metal limit switch with pusher with extended roller LM-10R PROMET

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

• Switching function: Snap contact
• Number of safety auxiliary contacts: 0
• Number of switching contacts: 1
• Number of normally closed contacts: 0
• Number of normally closed contacts: 0
• Housing material: Metal
• Switching element type: Tappet with roller
• Degree of protection (IP): IP56
• Sensor width [mm]: 98
• Ambient temperature under operating conditions [°C] to: 65
• Ambient temperature under operating conditions [°C] from: -25
• Sensor height [mm]: 77
• Sensor length [mm]: 24
• Rated operating current Ie for AC-15, 125 V [A]: 1
• Rated operating current Ie for AC-15, 230 V [A]: 1
• Rated operating current Ie for AC-15, 24 V [A]: 1
• Rated operating current Ie for DC-13, 230V [A]: 0.5000
• Rated operating current Ie for DC-13, 125 V [A]: 0.5000
• Rated operating current Ie in DC-13, 24 V [A]: 0.5000
