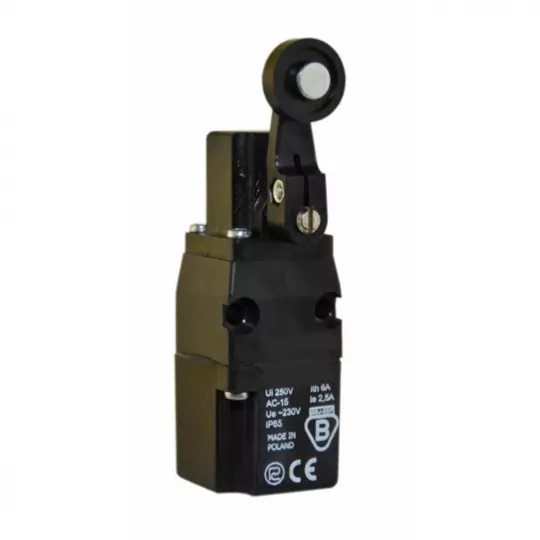

Limit switch 1R/1Z rotary lever W0-59-651016 PROMET

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

• Sensor length: 100.8 mm
• For safety systems: no
• Switching function: Snap contact
• Number of safety auxiliary contacts: 0
• Number of switching contacts: 1
• Number of normally closed contacts: 1
• Number of normally closed contacts: 1
• Housing material: Plastic
• Type of actuator: Rotary lever
• Housing construction type: Rectangular
• Degree of protection (IP): IP65
• Sensor width: 29 mm
• Ambient temperature under operating conditions:-25 to 40 °C
• Electronic output: no
• Forced disconnection: no
• Sensor height: 29 mm
• With status indicator: no
• Rated operating current Ie for AC-15, 230 V:.5 A
• Rated operating current Ie for DC-13, 230 V: 0.3 A
