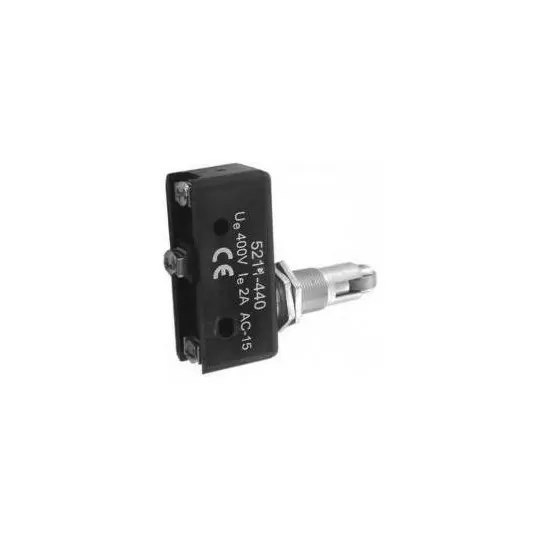

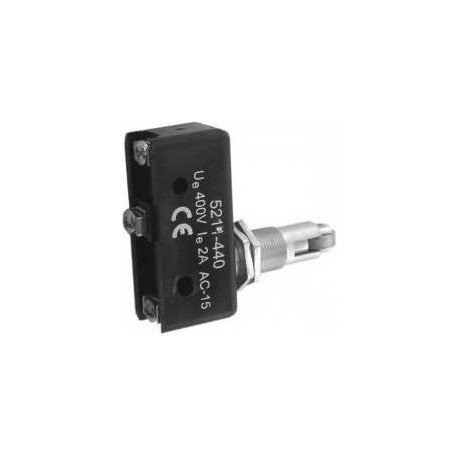

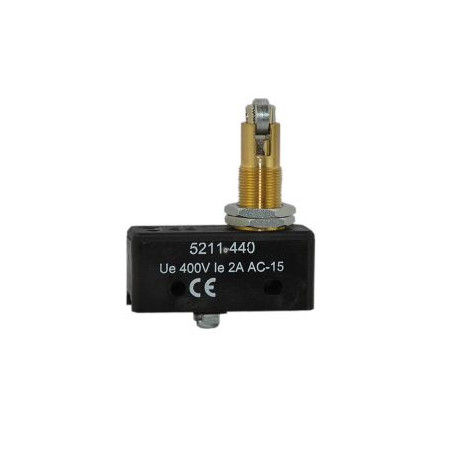

Limit switch 1R/1Z pivot with roller W0-5211-440 PROMET

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

• Sensor length [mm]: 49.5000

• Switching function: Snap contact

• Number of switching contacts: 1
• Number of normally closed contacts: 1
• Number of normally closed contacts: 1

• Housing material: Plastic

• Standard compliant housing: Yes

• Suitable for security applications: No
• Switching element type: Tappet with roller
• Electrical connection type: Metric cable grommet

• Degree of protection (IP): IP40

• Sensor width [mm]: 17.5000

• Ambient temperature under operating conditions [°C] to: 55

• Ambient temperature under operating conditions [°C] from: -25

• Electronic output: No

• Forced disconnection: No

• Sensor height [mm]: 21.6000

• Rated operating current Ie for AC-15, 125 V [A]: 2
• Rated operating current Ie for AC-15, 230 V [A]: 2
• Rated operating current Ie for AC-15, 24 V [A]: 2
• Rated operating current Ie for DC-13, 230V [A]: 0.2000
• Rated operating current Ie for DC-13, 125 V [A]: 0.2000
• Rated operating current Ie in DC-13, 24 V [A]: 0.2000
