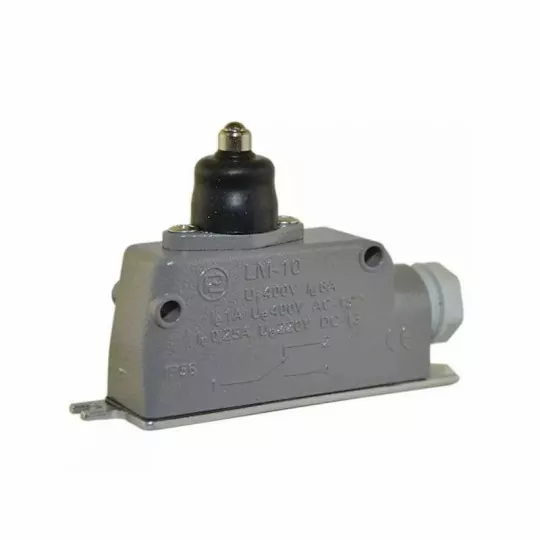

LM-10 limit switch in housing with pusher PROMET

Product description

A limit switch is a component of an electrical circuit in which it is a fucction of protection. Limit switches are most often used in control, protection and control systems. Most often the switches can be used in presses, robots, receivers and conveyors used in the manufacture of industrial machinery. This model is distinguished by very high electrical parameters and a robust insulating housing.

Technical data:

• AC15 110V/230/400V: 1 A
• DC13 48V/110V/220V: 0.5A
• Rated insulation voltage: 400 V AC
• Rated continuous current: 6 A
• Frequency of switching: 1200 ł/h
• Ambient temperature: -25...+65 deg C
