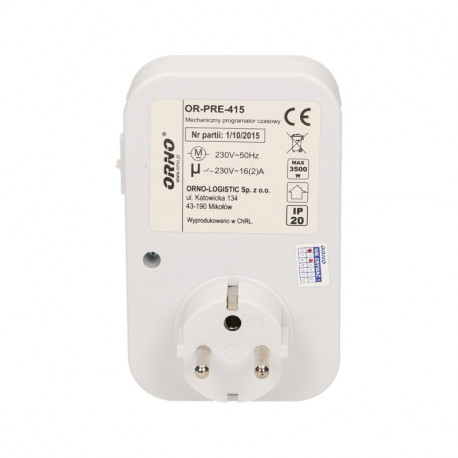

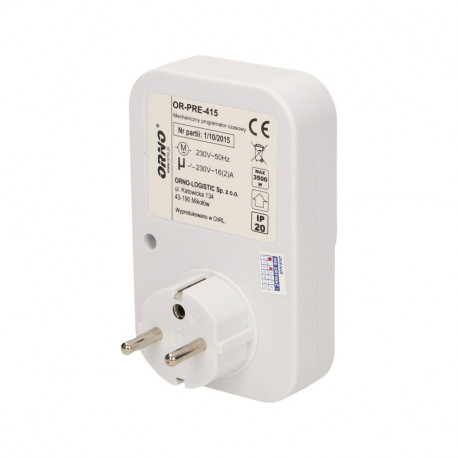

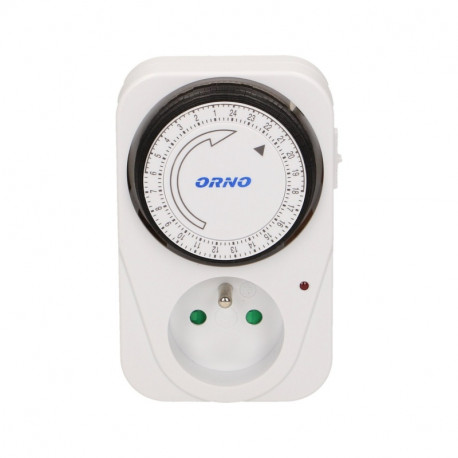

Mechanical daylight saving timer OR-PRE-415 Orno

Electronic timer allows you to build groups of relays. If too many illuminated buttons are connected, there may be spontaneous switching of lighting or switching of lighting permanently. The controller is powered by a current voltage of maximum 230V. The device has both quick installation and removal at any time and this is due to its design. The plug of the programmer is directly mounted in the power socket, at the same time it does not occupy it directly. Access to the socket is still available.

The contactcurrent given in the technical data is a maximum value and may be subject to limitations. If the information provided shows that the relay in the device is insufficient, it is recommended to use an external switching element (such as a contactor) suitable for switching large surge currents. The device has the ability to set operating hours in both day and day-night modes.

Technical data:

• Ean 5901752486034
• Number of channels 1
• Supply voltage range [V] from 230
• Supply voltage range [V] to 230
• Supply voltage range [V] 230
• Supply voltage frequency from/to [Hz] from 50
• Supply voltage frequency from/to [Hz] up to 60
• Degree of protection (IP) IP20
• Manual operation Yes
• Rated switching current at 250 V AC [A] 16
• Mounting method Other
• Daily programming Yes
• AC supply voltage type
• Description Mechanical timer OR-PRE-415
