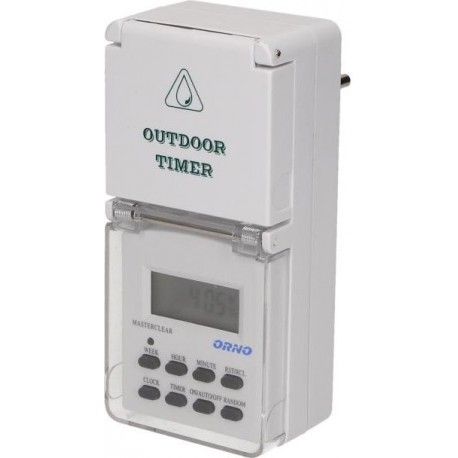

External electronic timer OR-PRE-403 ORNO

Product description

Electronic timer allows you to build groups of relays. If too many illuminated buttons are connected, there may be spontaneous switching of lighting or switching of lighting permanently. The controller is powered by a current voltage of maximum 230V. The device has both quick installation and removal at any time and this is due to its design. The plug of the programmer is directly mounted in the power socket, at the same time it does not occupy it directly. Access to the socket is still available.

The contactcurrent given in the technical data is a maximum value and may be subject to limitations. If the information provided shows that the relay in the device is insufficient, it is recommended to use an external switching element (such as a contactor) suitable for switching large surge currents. The device has the ability to set operating hours in both day and day-night modes. It also has the ability to program operation for the next 7 days.

Technical specifications:

• 10 time programs
• manual or random on/off switching
• large LCD display
• summer time function
• RANDOM function
• 16 day of the week combinations
• rechargeable battery
• power supply: 230V AC/50Hz
• power: 3600W/16(2)A
• mode: 12 or 24 hours
• minimum operating time setting: 1 minute
• measurement accuracy: 1 minute per month
• internal rechargeable battery: NiMH 1.2V;>100 hrs.
• degree of protection: IP44
• operating temperature: ^-100C+400C
• dimensions: 65 x 139 x 88.5 mm (W/H)
