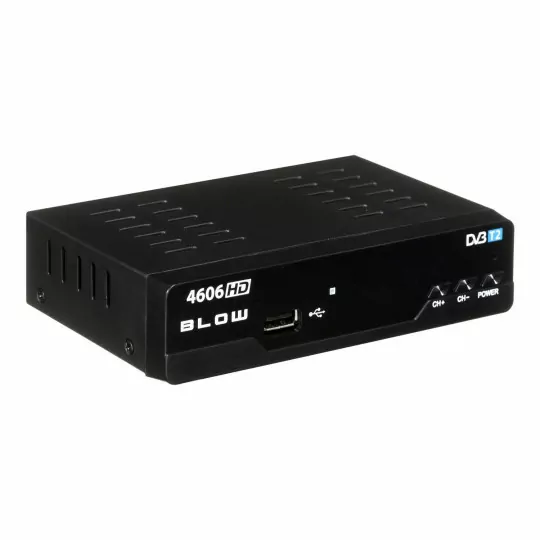

DVBT-T2 4606HD BLOW TV decoder tuner

Product description

A decoder is a piece of RTV equipment that works with a television feed. This device is adapted to receive terrestrial digital television, it must have MPEG built-in. With the help of this equipment, in the simplest translation, we have the ability to receive multiple TV stations. Increasingly, devices of this type are additionally equipped with USB inputs or Ethernet connections. In this case, they act as a player.

This equipment receives many signals with very high resolution. This affects its performance. Such a decoder can be used for home use and not for commercial applications. The decoder meets all regulatory safety standards. The decoder also has the ability to support the TIME SHIFT time-shifting function, DVB-T TV recorder PVR function, as well as a music player and photo viewer.

Specifications:

• Processor: Ali3821
• Input frequency: 170-230MHz, 470-862MHz
• FR input signal level: 20~85dBm
• IF bandwidth: 6.7/8MHz
• Modulation: QPSK, 16QAM, 64QM
• Decoding format: MPEG-2 (ISO/IEC 13818-2) MPEG-4 (ISO/IEC 14496) H.264 (ISO/IEC 1449610) 1080i@30fps
• Video format: 720p/1080i/1080p
• Output ports: SCART, HDMI, AUDIO L/R
• Supported video formats: MKV, H264/AVC, AVI, XVID, MPFG-4, MPFG-2, TS, TP, TPR, M2TS, MPEG, MP4, MOV
• Decoding Format: MPEG-1&MPEG-2 (leyer1&leyer2), AAC, AAC+, HE-AAC, AC3-3 (Dolby Digital+)
• Audio Output: Digital audio; S/PDIF, digital, analog L/R.
• Playable audio formats: E-AC3 (Dolby Digital Plus), AC3, WMA, WAV, ACC/WM
• Supports disk formats: (FAT16, FAT32, NTFS) max USB slot 500mA
• Supported formats: DVB, TXT (all format), SRT, SUB, ASS, SSA, SAM
• Voltage: 200-240V, 50/60Hz
• Maximum power consumption: 5W / standby < 0.5W
