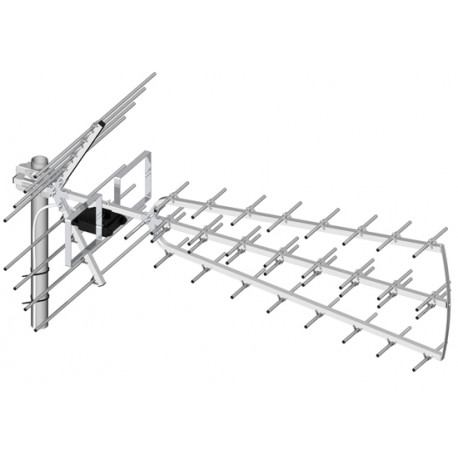

TV antenna 44/21-69/W TRI-DIGIT with DVB-T amplifier DIPOL
Product index: A2675
Price (with Tax.)
PLN181.86
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Product description
TV antenna 44/21-69/W TRI-DIGIT enables reception in DVB-T/T2 standard. Dipol Tri Digit is a 44-element antenna for channels 21-60 designed to receive digital DVB-T/T2 signals broadcast from terrestrial transmitters in the UHF band. It is characterized by small dimensions (length 104 cm) and high gain. The built-in amplifier provides a total gain of the antenna up to 47dBi.
The antenna will successfully find application in both individual and community installations. Parts of the antenna are made of aluminum, steel structural elements are galvanized. The Tri Digit A2675 antenna is sold in a customer-convenient version (it is 90% assembled) and individually packed in a box with instructions. The antenna box contains an LNA-177 B4009 amplifier with 30 dB gain. The antenna cable is attached to it with an F-connector.A D0010 power supply is included. If you need to use a subscriber amplifier, such as CA-215 R90461 or HS-013 R82010, you can use it to power the antenna amplifier.
Technical data:
- DIPOL 44/21-60
- Tri Digit with amplifier.
- Code A2675
- Gain [dBi] up to 47dBi
- Channels 21-60
- Radiation ratio forward/rear [dB] 19-26
- Polarization H (V when rotated by 90°)
- Number of elements 44
- Impedance [ohm] 75
- Power supply 230V AC
- 12V DC 100mA
- Packaging color box
- Weight [kg] 1.51
- Beam width V/H [°] 45/56
- Length [mm] 1050
- Width [mm] 50
- Height [mm] 55
