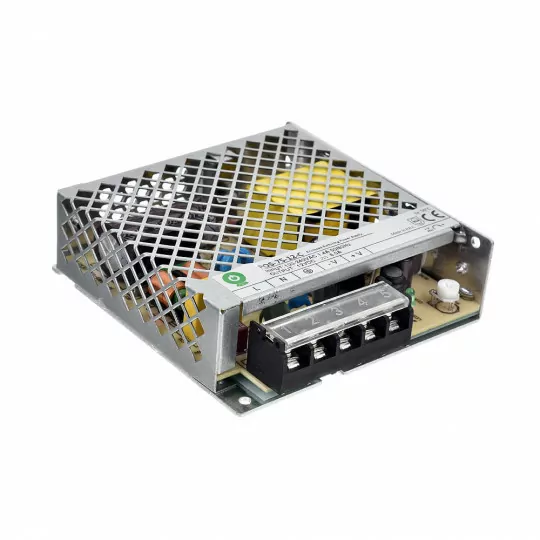

Switching power supply 12V 6A mesh 75W POSPOWER

The voltage power supply is a switch mode product characterized by low power consumption at rest and high efficiency of up to 90%. The aluminum housing and small dimensions allow the device to be installed even in hard-to-reach places. It is designed to power LED lighting, work in industrial automation systems, machine control. It is also used in industrial electronics. It has a number of protections such as short-circuit, overload and overvoltage protection which guarantee trouble-free operation.

Technical data:

• Type of power supply voltage
• Surfacemounting method
• Rated output voltage (V) 12V DC
• Ratedoutput power (W) 72W
• Ratedoutput current (A) 6A
• Input voltage value range 90 ÷ 264VAC
• Input voltagefrequency range 47 ÷ 63Hz
• Output voltage adjustment range 11 ÷ 13V
• Outputcurrent adjustment range 0 ÷ 6A
• Efficiency 90%
• Output voltage tolerance +/- 1%
• Current drawn from the mains (AC) 0.85A - 230VAC
• Inrush current (max.) 50A - 230VAC(25°C)
• Power consumption in no-load condition 0.3W
• Short-circuit protection yes
• Overload protection yes
• Overvoltage protection yes
• Operating temperature -20°C ÷ +70°C

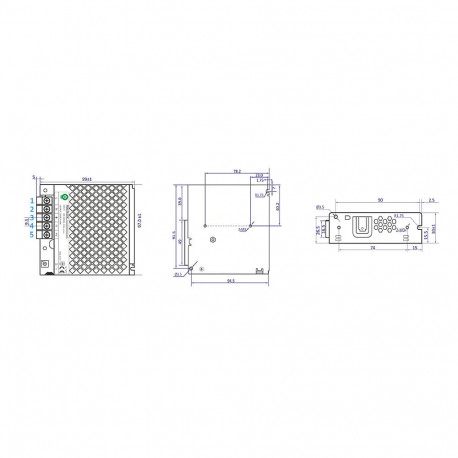

• Dimensions (L x W x H) 99 x 97 x 30mm
• Weight 0.3kg
