Technical information
Supply voltage
230V
Output voltage
12V
Rated power
350W
Product description

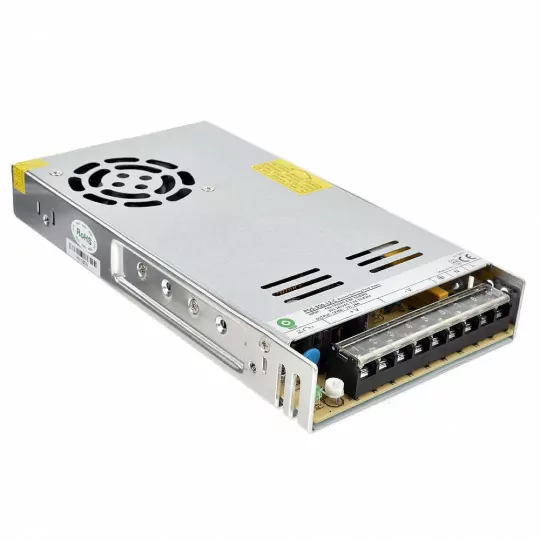

LED voltage power supply POS-350-12-C is a switch mode product characterized by low power consumption at rest and high efficiency reaching 86%. The aluminum housing and small dimensions allow the device to be installed even in hard-to-reach places. It is designed to power LED lighting, work in industrial automation systems, machine control, it is also used in industrial electronics. It has a number of protections such as short-circuit, overload and overvoltage protection that guarantee trouble-free operation. C series power supplies have smaller dimensions than standard modular power supplies.
Technical specifications:
- Voltagepower supply type
- Surfacemounting method
- Rated output voltage (V) 12V DC
- Ratedoutput power (W) 348W
- Ratedoutput current (A) 29A
- Input voltage value range 90 ÷ 132VAC / 180 ÷ 264VAC (selectable by switch)
- Input voltage frequency range 47 ÷ 63Hz
- Output voltageadjustment range 10.8 ÷ 13.2V
- Output current adjustment range 0 ÷ 29A
- Efficiency 86%
- Output voltage tolerance +/- 1.5%
- Current drawn from mains (AC) 4.0A - 230VAC / 6.8A - 115VAC
- Inrush current (max.) 60A - 230VAC(25°C)
- Power consumption in no-load condition 0.75W
- Short-circuit protection yes
- Overload protection yes
- Overvoltage protection yes
- Operating temperature -20°C ÷ +70°C
- Dimensions (L x W x H) 215 x 115 x 30mm
- Weight 0.81kg
