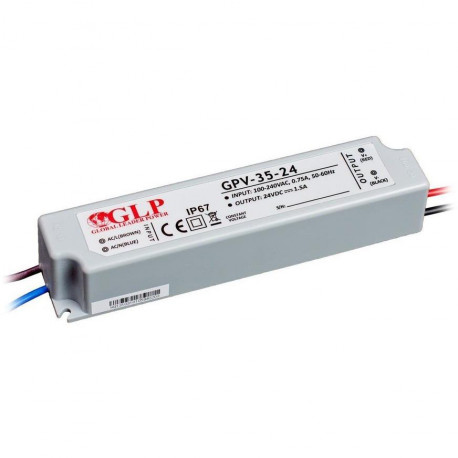

24V/1.5A CV IP67 35W power supply GPV-35-24 MPL GPV

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.

Technical specifications:

• Power supply design: switch mode
• Output voltage: 24 V
• Current capacity: 1.5 A
• Maximum output power: 36 W
• Mains voltage range: 100 V AC to 240 V AC
• Mains current consumption: 0,75 A
• Mains voltage frequency range: 50 Hz to 60 Hz
• Efficiency: 85%
• Maximum inrush current: 70 A / 230 V AC, 35 A / 115 V AC
• Short circuit protection: Yes
• Overload protection: Yes
• Recovery time after fault clearing: < 500 ms
• Degree of protection: IP67
• Protection class: II (double insulation)
• Operating environment temperature range: -30°C to+70°C
• Dimensions: 149 mm x 32 mm x 28 mm
• Weight: 250 g
