Product description
Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.
What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.
Features of the ADWS-200-12 power supply:
- Ultra slim housing: 32mm
- IP67 degree of protection
- Universal range of input voltage values (170 ÷ 264VAC)
- Protections: Overload / Short-circuit / Thermal.
- Cooled by free air circulation
- High efficiency of 88%
Power supplies of this group are the best value for money.
- Type of power supply voltage
- Surfacemounting method
- Rated output voltage (V) 12V DC
- Rated output power(W) 200.4W
- Protection class IP67
- Ratedoutput current (A) 16.7A
- Input voltage value range 170 ÷ 264VAC
- Input voltage frequency range 47 ÷ 63Hz
- Efficiency 88%
- Output voltage tolerance +/- 2%
- Current drawn from the mains (AC) 0.87A - 230VAC
- Short-circuit protection yes
- Overload protection yes
- Thermal protection yes
- Operating temperature -30°C ÷ 50°C

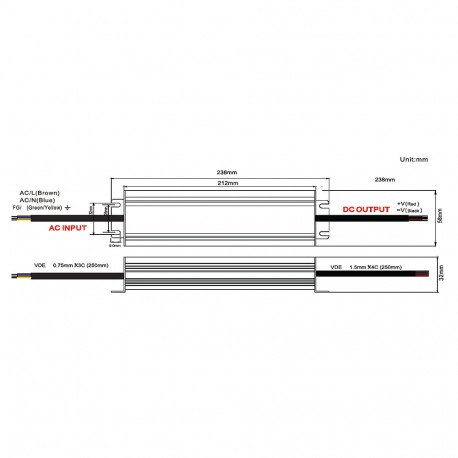

- Dimensions (L x W x H) 238 x 57 x 32mm
- Weight 1.1kg
