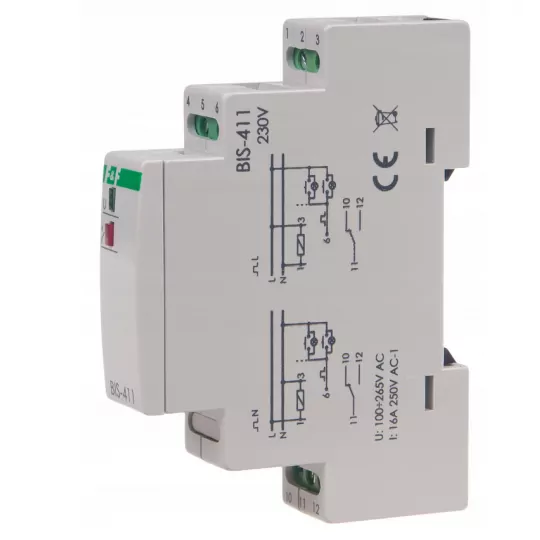

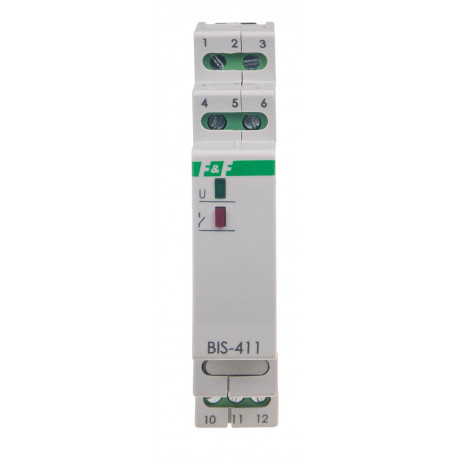

BIS-411 230V F&F bistable relay

Product description

The <<F&F>> company was established in 1992 on the basis of a trading and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in electronics and electrical engineering, allowed it to create a manufacturing company offering a wide range of electronic control devices. Originally, the company's offerings were mainly timers and phase loss sensors. The company's strategy is based on constantly expanding its offerings and occupying attractive market niches. Today, F&F's product range includes a wide range of devices for home and industrial automation needs.

Bistable relays offer a choice among devices with a wide variety of features and functions. Bistable relay is another quite often forgotten element, which, however, can significantly facilitate the work of any electrical installer. Such a solution is used for private as well as public buildings, most often for staircase lighting. They help to synchronize the switches on the first floor and each subsequent, floor. When you apply this product from today you no longer have to walk in the dark. It works on the following principle: the first pulse from the switch turns on the relay, and the second pulse turns it off. Monostable relays allow the user to generate one control pulse, and the relay itself does the rest.

Technical data:

• BIS-411 230V: 100÷265V AC
• contact/load current: AC-1
• BIS-411 230V: separated 1P / 16a
• Control pulse: 100÷265V AC 20mA
• Max control pushbutton current: 5mA
• Tripping delay: 0.1÷0.2s
• Power supply signaling: green LED
• Signaling of tripping: red LED
• Power consumption: standby - 0.15W; power on - 0.6W
• Operating temperature: -25÷50°C
• Connection: 2.5mm² screw terminals
• Tightening torque: 0.4Nm
• Dimensions: 1 module (18mm)
• Mounting: on TH-35 mm rail
• Degree of protection: IP20
