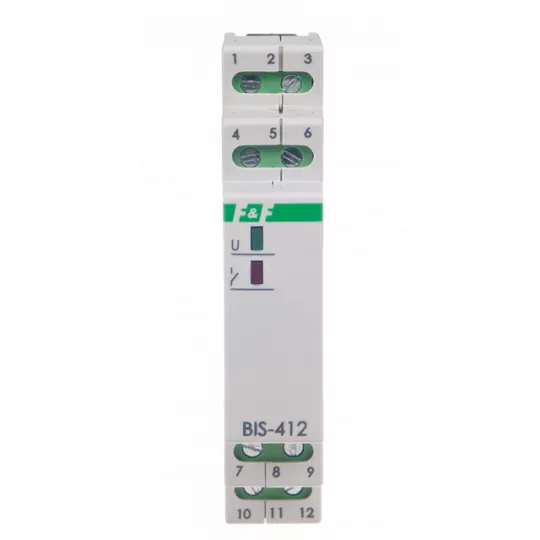

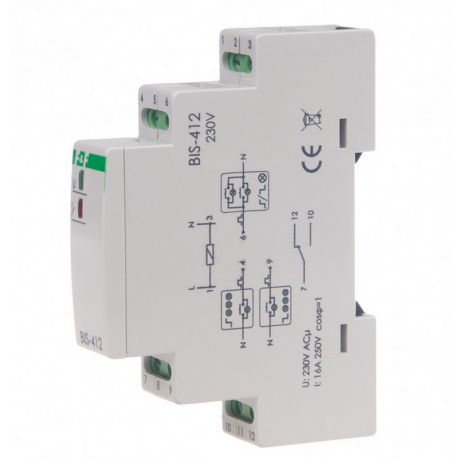

BIS-412 16A 230V AC 1P F&F bistable relay

Product description

The company <<F&F>> on the basis of a sales and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in electronics and electrical engineering, allowed it to create a manufacturing company offering a wide range of electronic control devices. The company's strategy is based on constantly expanding its offerings and occupying attractive market niches. At present, F&F's offer includes a wide range of devices for home and industrial automation needs.

A bistable relay is a choice among devices with a wide variety of features and functions. Bistable relay is another quite often forgotten element, which, however, can significantly facilitate the work of any electrical installer. Such a solution is used at private as well as public buildings, most often for staircase lighting. They help to synchronize the switches on the first floor and each subsequent, floor. When you apply this product from today you no longer have to walk in the dark. It works on the following principle: the first pulse from the switch turns on the relay, and the second pulse turns it off. Monostable relays allow the user to generate one control pulse, and the relay itself does the rest.

Specifications:

• Function: electronic switch
• Mounting method: DIN rail
• Control voltage 1: 230~230 V
• Type of control voltage 1: AC
• Frequency of control voltage 1: 50~50 Hz
• Rated switching current: 5 A
• Supply voltage range: 230~230 V
• Supply voltage type: AC
• Maximum switching capacity for incandescent lamps: 600 W
• Maximum switching capacity for fluorescent lamps: 300 VA
• Maximum switching capacity for fluorescent lamps (DUO compensation): 300 VA
• Maximum switching capacity for fluorescent lamps (with parallel compensation): 200 VA
• Manual operation possible: No
