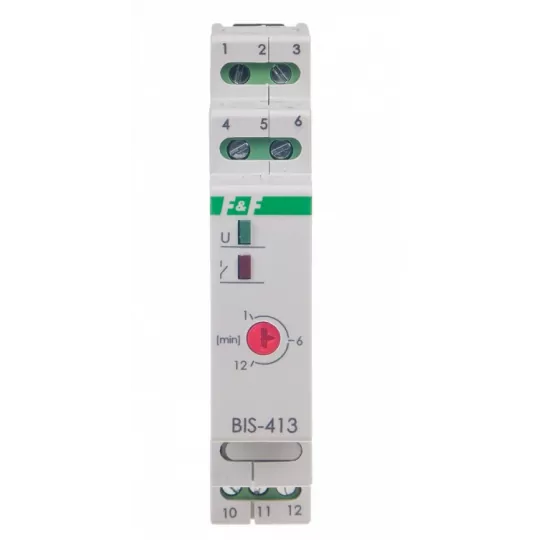

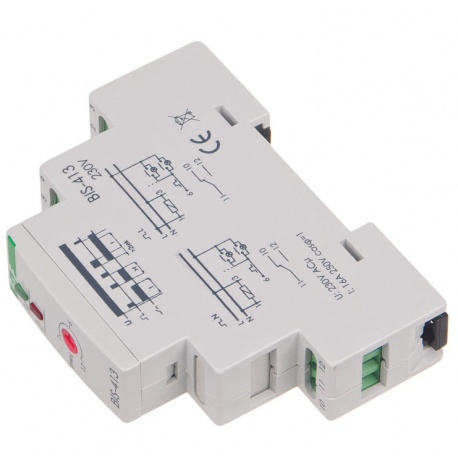

BIS-413 230V F&F bistable relay

Product description

The <<F&F>> company was established in 1992 on the basis of a trading and service company operating in the electronics industry. Its previous marketing experience, as well as technical experience in electronics and electrical engineering, allowed it to create a manufacturing company offering a wide range of electronic control devices. Today, F&F's product range includes many devices for home and industrial automation needs.

Bistable relays are a choice among devices with a wide variety of features and functions. Bistable relay is another quite often forgotten element, which, however, can significantly facilitate the work of any electrical installer. Such a solution is used for private as well as public buildings, most often for staircase lighting. They help to synchronize the switches on the first floor and each subsequent, floor. When you apply this product from today you no longer have to walk in the dark. It works on the following principle: the first pulse from the switch turns on the relay, and the second pulse turns it off. Monostable relays allow the user to generate one control pulse, and the relay itself does the rest.

Technical specifications:

• Supply voltage: 165÷265 V AC
• Local control: yes
• Maximum load current AC-1: 16 A
• Executing element: relay
• Contact configuration: 1 x NO/NC
• Contact separation: yes
• Resistance to surge currents: no
• Number of channels: 1
• Functionality: on/off with timer
• Tripping delay: 0.1 ÷ 0.2 s
• Control pulse current: less than 5 mA
• Cooperation with backlit buttons: yes
• Status memory after power failure: no
• Shutdown time: 1÷12 min.
• On time function: yes
• Dedicated central control inputs: no
• Radio control: no
• Connection: 2.5 mm2 screw terminals
• Tightening torque: 0.4 Nm
• Power consumption: 0.8 W
• Operating temperature: -25 ÷ 50 °C
• Dimensions: 1 module (18 mm)
• Mounting: on 35 mm rail
• Degree of protection: IP20
