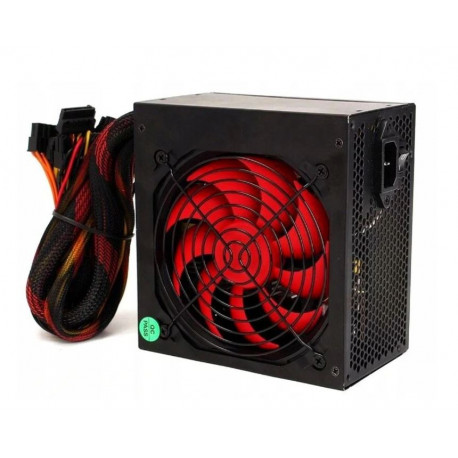

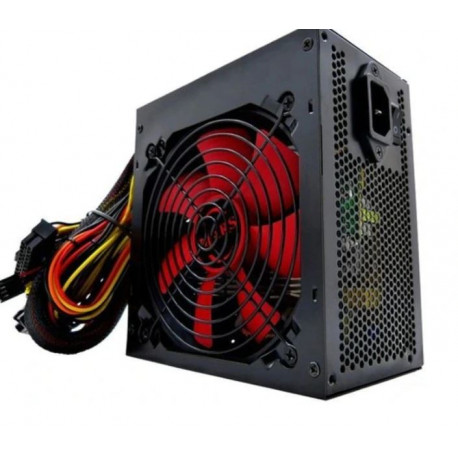

BANDIT POWER 650W PFC computer power supply unit

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for desktop computers. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it

Technical specifications:

• Manufacturer: BANDITPOWER
• Model: ATX-650 Bronze 80+
• Power supply type: GAMING PRO series
• Certification: Bronze 80+
• Product type ATX power supply
• ATX 2.2 format
• Maximum power: 650 watts
• Efficiency: 80+
• Input voltage 230V / 50Hz
• Current intensity on +3.3V line - 30A
• Current intensity on +5V line - 32A
• Current intensity on +12V line - 24A + 23A
• MPC power plug type (P1): 20+4 pin
• ATX12V 8-pin power supply plug: (4pin + 4pin = 8pin)
• PCI-E power plug (6 +2 pin): 2 pcs.
• Molex power plug (4-pin): 2 pcs.
• SATA power plug : 4 pcs.
• PFC filter: Yes
• OVP (overvoltage protection): Yes
• OCP (overcurrent protection): Yes
• OPP (overload protection): Yes
• OTP (overheat protection): Yes
• SCP (short circuit protection): Yes
• Power cable included: Yes
• Fan size: 140 mm
• Fan speed control: Automatic
• Packaging: OEM
• Product Dimensions (L x W x H): 150 x 140 x 85 mm
• Compliance with standards: CE, FCC, ROHS
