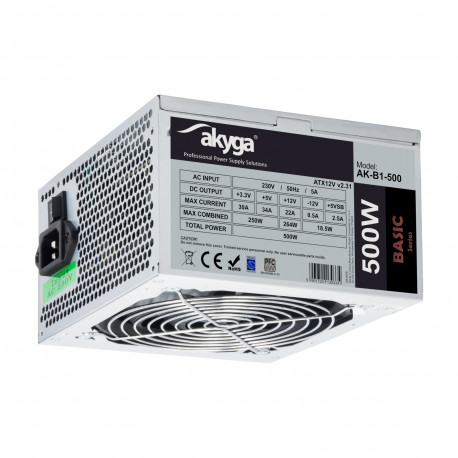

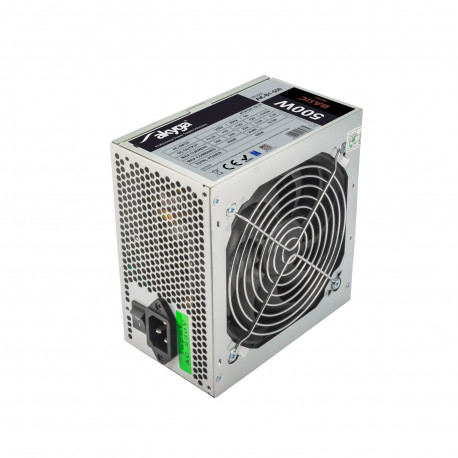

ATX 500W FAN-12cm PCI-E power supply AK-B1-500 Akyga

Product index: ZASAKGOBU0005
Price (with Tax.)
PLN99.00
0 qty.

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Supply voltage
230V
Output voltage
24V
Rated power
500W

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for desktop computers. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it

Technical specifications:

  • Supply voltage: 230 V / 50 - 60 Hz
  • Output voltage: DC 3.3 V / 5 V / 12 V
  • Output current: up to 34 A
  • Built-in circuit breaker
  • PFC circuit: passive
  • Cooling: 120 mm fan
  • Protection: OVP / OCP / OPP/ OTP / SCP
  • Modular cabling: no

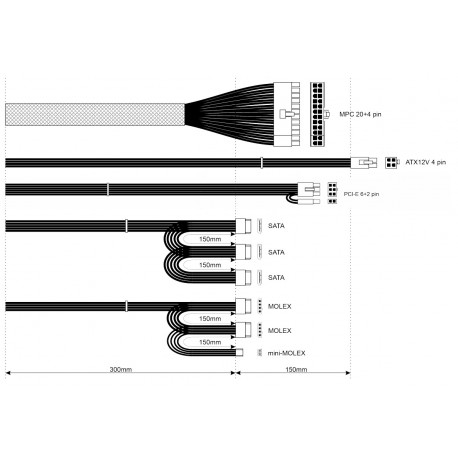

  • Connectors:
    • ATX 24-pin (20+4): 1
    • ATX 12V P4: 1
    • PCI-E 8-pin (6+2): no
    • PCI-E 6-pin: 1
    • PCI-E 6+2 pin: no
    • SATA: 3
    • Molex: 2
    • Mini-Molex: 1
  • Dimensions: 150 x 140 x 85
