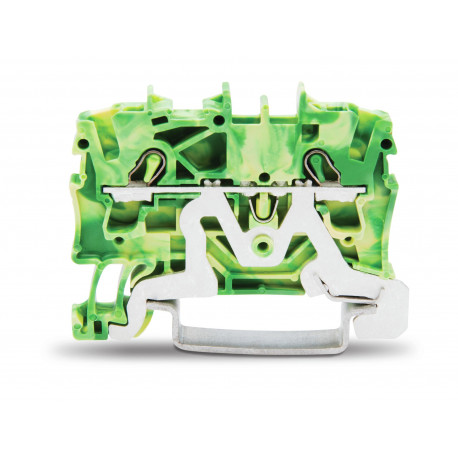

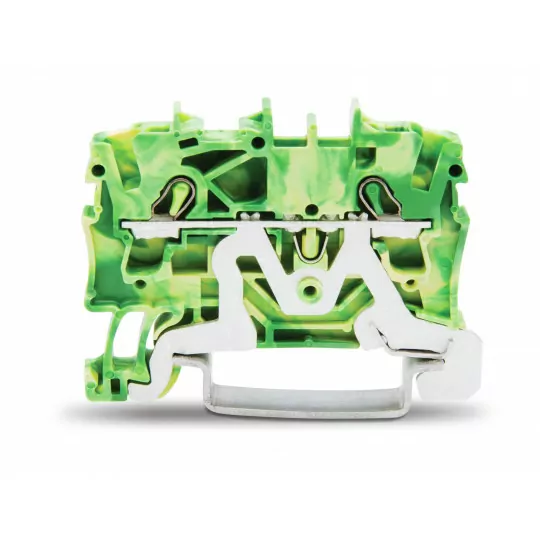

2.5mm yellow-green 2 wire rail connector 2002-1207 WAGO

Product description

Rail connectors are commonly known as zugs. Their main task is to connect wires in building switchgear. It is to them that during the prefabrication of the switchgear the inputs and outputs from electrical apparatus are led out. They are most often mounted on the highest DIN/Euro/TS-35 rail. They are used to connect: wire and cable conductors, for medium and low voltages.

Electrical circuits are connected straight to the rail connectors according to the guidelines and markings on the connectors, which significantly speeds up the installation of the switchgear. Rail connectors are the assurance of fast and stable connection.

Technical data:

• Cross section of the connected wire without sleeve end: 0.25~4 mm2

• Cross section of connectable wire cable with sleeve end: 0.75~2.5 mm2

• Cross section of pluggable single-wire conductor: 0.75~4 mm2

• Cross section of pluggable multi-conductor wire: 0.25~2.5 mm2

• Electrical connection type 1: Spring clamp

• Electrical connection type 2: Spring clip

• Number of levels: 1

• Number of terminals per level: 2

• Flammability class of insulation material according to UL94: V0

• Raster width/size: 5.2 mm

• Height at lowest mounting method: 32.9 mm

• Length: 48.5 mm

• Closure plate required: Yes

• Color: Green-yellow
