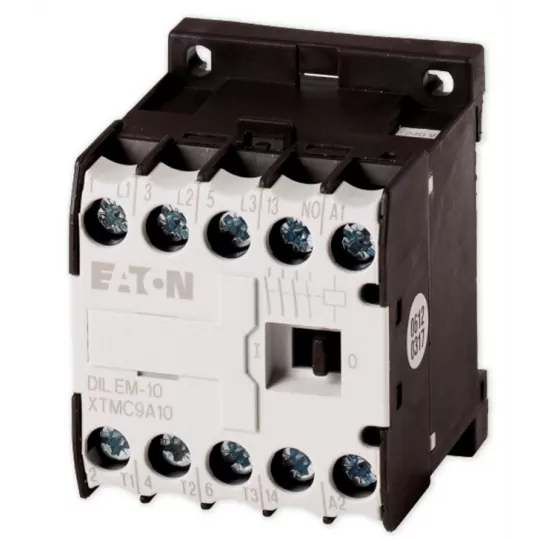

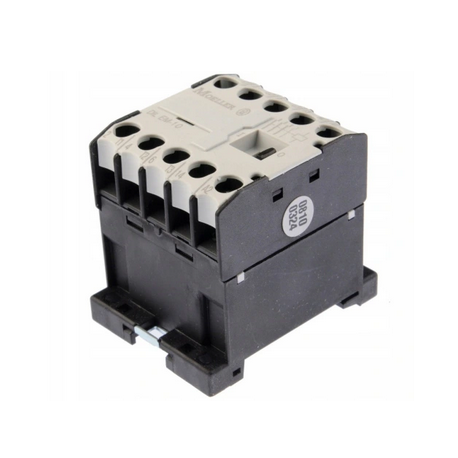

Contactor 9A 3P 1z/0r DILEM-10 230V 051786 Eaton

Product description

Contactors otherwise known as electrical switches. Such mechanisms find their application, among other things, in the transmission of signals of high-current networks. They can often be confused with relays, but have some differences, for example, that just relays transmit low-current and zero-current signals. It works by switching on and off the electrical circuit, even on an overloaded installation.

The contactor is characterized by high mechanical durability and high switching frequency, with relatively small dimensions, light weight and high operational reliability. Modern contactors also offer the option of connecting accessories, for example, places for connecting signaling devices, various types of interlocks and protective elements, as well as electronic timing modules that allow, for example, automatic adjustment of the contactor's operating time.

Technical data:

• Maximum load AC-3: 2.2 kW (230V), 4 kW (400/690V); AC-4: 1.5 kW (230V), 3 kW (400/690V);
• Number of poles 4
• Pole configuration 3P + 1NO
• Number of modules 18mm 2.5
• Starting voltage 230 V 50 Hz, 240 V 60 Hz AC
• Rated current In 9 A
• Rated operating current Ie 9 A (AC-3), 22 A (AC-1), 6.6 A (AC-4)
• Short-circuit breaking capacity 42 A (690 V), 64 A (500 V), 90 A (230/400V)
• Rated switching voltage Ue 690 V~
• Rated surge voltage Uimp 6 kV
• Rated insulation voltage Ui 690 V~
• Mechanical strength (number of cycles) 7,000,000
• Mounting screws to the floor, 35 mm rail (TH35/DIN)
• Cross section of connecting wires (wire) 0.75 - 1.5 mm²
• Cross section of connecting wires (wire) 0.75 - 2.5 mm²
• Tightening torque 1.2 Nm
• Protection class IP20
• Operating temperature -25°C ÷ +50°C
• Product dimensions 45×58×52 mm
• Wire stripping length 8 mm
• Net weight (kg) 0.17
