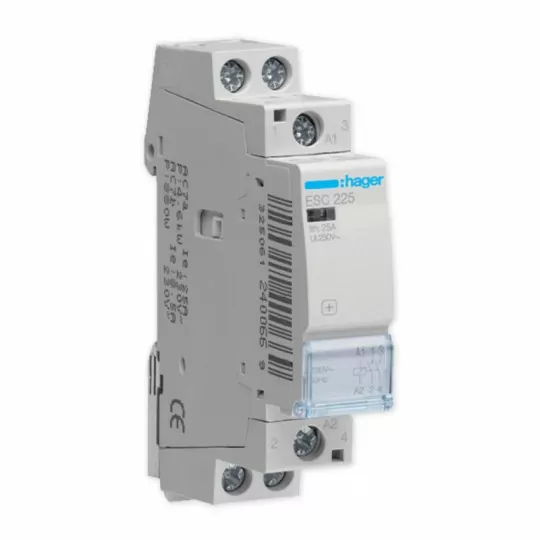

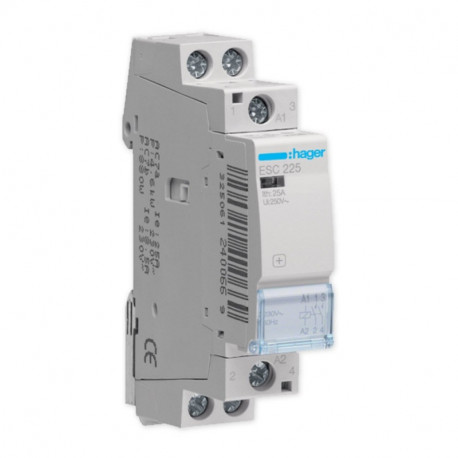

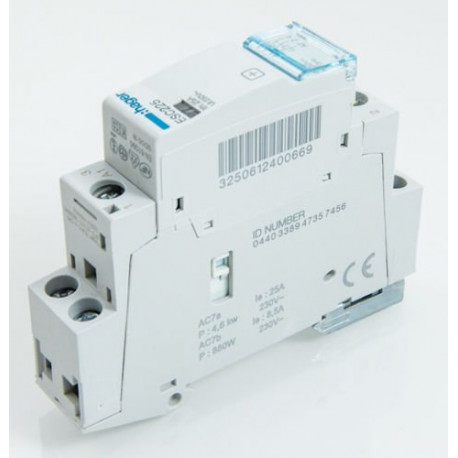

Modular contactor 25A 2Z/0R 230V ESC225 Hager

Product description

Modular contactor is otherwise known as a mechanical switch, it is designed to create a sense of security for users of the electrical system. It also provides a more efficient and effective operation of the entire connected electrical system. This equipment is mounted on rails. This helps to make its assembly or disassembly faster. The key elements of the internal construction, responsible for the operation of the device, are the working contacts - one or several pairs, the coil and the solenoid.

This product works on the principle of closing and opening of the contacts of the installation by means of an electromagnet. When the coil of the contactor is activated by a voltage of the appropriate value, the contacts close - the circuit is closed, that is, the current is switched on.And when the voltage on the coil drops, and the contacts automatically return to the original position, while opening - the opening of the circuit takes place, that is, the disconnection of the current.

Technical data:

• Number of poles 2Z
• Number of modules18mm 1
• Type of contact NO (normally open contact)
• Rated current In 25 A
• Control voltage 230 V~
• Rated switching voltage Ue (AC) 400 V
• Rated frequency 50 Hz
• Rated surge voltage Uimp 4 kV
• Rated insulation voltage Ui 250 V
• Max. power loss for rated current 5.9 W
• Electrical endurance (number of cycles) 30000
• Mechanical endurance (number of cycles) 100000
• Mounting 35 mm rail (TH35/DIN)
• Connection method cage screw terminals
• Max. cross-section of connecting wires 6 mm² (wire), 10 mm² (wire)
• Dimensions (W × H × D) 17.85×83×60 mm
• RoHS, CE certifications
