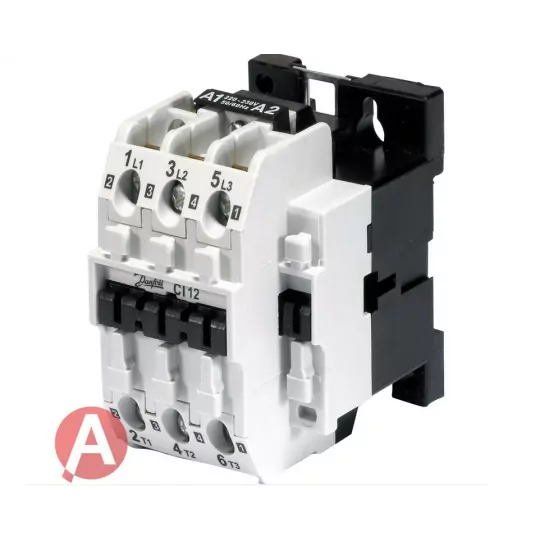

Power contactor 12A 3P 230V 0Z/0R 037H003132 Danfoss

Product description

Modular contactors otherwise known as electrical switches. Such mechanisms are used, among other things, in the transmission of signals of high-current networks. They can often be confused with relays, but have some differences, for example, that just relays transmit low-current and zero-current signals. It works by switching on and off the electrical circuit, even on an overloaded installation.

The contactor is characterized by high mechanical durability and high switching frequency, with relatively small dimensions, light weight and high operational reliability. Modern contactors also offer the option of connecting accessories, for example, places for connecting signaling devices, various types of interlocks and protective elements, as well as electronic timing modules that allow, for example, automatic adjustment of the contactor's operating time.

Technical data:

• EAN : 5702423001538
• Number of normally open main contacts : 0
• Number of normally closed main contacts : 3
• Number of normally open auxiliary contacts : 0
• Number of normally closed auxiliary contacts : 0
• Type of control voltage : AC
• Main circuit connection type : Screw connection
• Modular version : No
• Rated operating power at AC-3, 400 V [kW] : 5.5000
• Rated control voltage Us for AC 50 Hz [V] to : 230
• Rated control voltage Us for AC 50 Hz [V] from : 220
• Rated control voltage Us for AC 60 Hz [V] to : 230
• Rated control voltage Us for AC 60 Hz [V] from : 220
• Rated operational current Ie for AC-1, 400 V [A] : 25
• Rated operational current Ie for AC-3, 400 V [A] : 12
