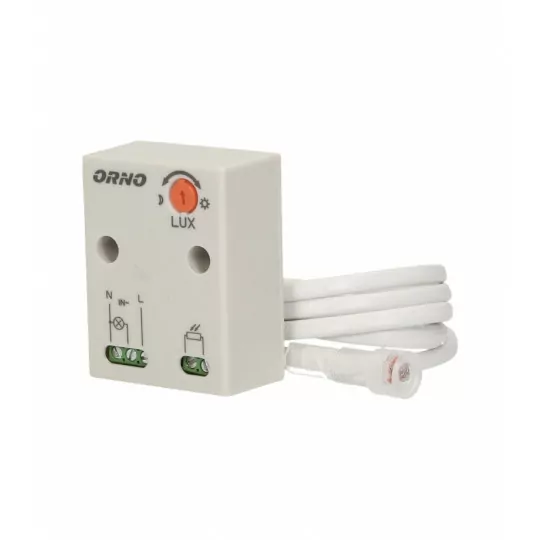

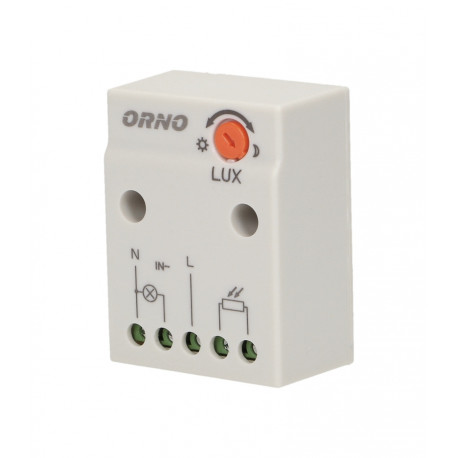

Twilight sensor with external probe IP65 OR-CR-233 Orno

Product description

The twilight sensor is used to automatically switch on and off, controlling lighting or other devices. Its use saves electricity and is often used to turn off lighting at night. The product has been adapted for installation in suspended ceilings and for use with LED lighting. The twilight sensor was made of high-quality plastic in gray color. It is valued even by the most demanding customers due to its high functionality. The product can operate from 1 to 8 hours or from dusk to dawn with a maximum load of 1200 watts and a standard power supply of 230 V.

Due to its IP20 protection rating, it can be successfully used in places with high humidity and dust. The twilight sensor features a light intensity of 2 to 300 lux. It can be used at temperatures that do not fall below -10°C and do not exceed 50°C. the dimensions of the product are as follows: 108 mm wide, 70 mm high and 40 mm deep. The operation of the motion sensor is indicated by a red LED built into the device.

Technical data:

• Power supply: ~230V/50Hz
• Max. Load: 2300W
• Protection degree of the probe/sensor: IP65 / IP20
• Light intensity: 2-100 lux
• Switch-on delay: 1 - 2 sec.
• Switch-off tripping delay: 4 - 5 sec.
• Operating Temp: -20°C +50°C
• sensor dimensions: 48 x 63.4 x 29.3 mm (W/H/D)
• material type: plastic
• Adjustment: light intensity
• Available shades: white
