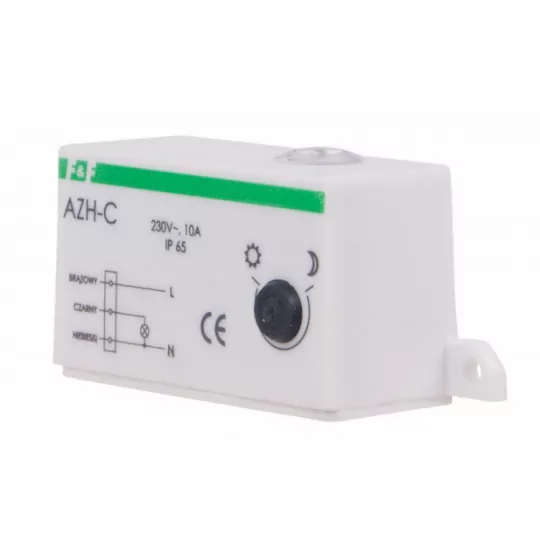

AZH-C hermetic automatic twilight switch F&F

Product description

Placethe external probe of the automat in a place with constant access to natural daylight, which by changes in its intensity will cause the lighting to switch on and off. The time of switching on the lighting can be set by the user with a potentiometer. Turning towards the "moon" - will switch on later, turn towards the "sun" - will switch on earlier.

The device is equipped with a delay system for switching on and off the lighting, thus eliminating the influence of interference (e.g. lightning) on the operation of the device.When the length of the connection cable of the probe is more than 10m, it should not be conducted near the parallel cable being under the voltage of the network or carrying high currents. When inspecting the operation of the automat, cover the whole probe tightly, e.g. with a cardboard box or dark, thick fabric. Covering only the "eye" of the probe, for example, with a finger is insufficient, as the intensity of sunlight is very strong and penetrates into the photoelement through the plastic housing and human body.

Technical data:

• Brightness adjustment range [lx] to: 1000
• Rated voltage [V]: 230
• Maximum switching capacity for fluorescent lamps (with parallel compensation) [VA]: 500
• Degree of protection (IP): IP65
• Embedded depth [mm]: 25
• Mounting method: Other
• Maximum sensor cable length [m]: 0.5
• With programmable night switch-off: No
• Maximum switching capacity for incandescent lamps [W]: 1500
• Input for push button: No
• Rated frequency [Hz] from: 50
• Rated switching current [A]: 10
• Sensor mounting method: Not included
• Brightness adjustment range [lux] from: 2
• Maximum switching capacity for fluorescent lamps [VA]: 350
• Degree of protection (IP) of the sensor: IP65
• Manufacturer code: AZH-C
