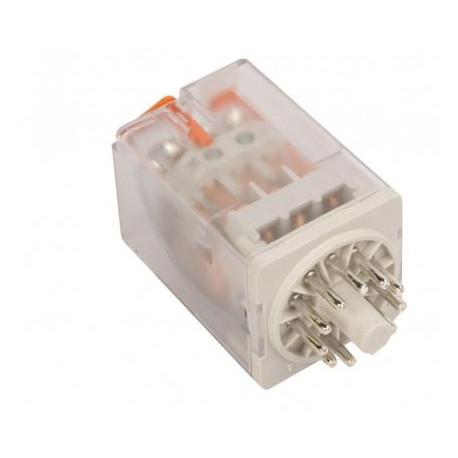

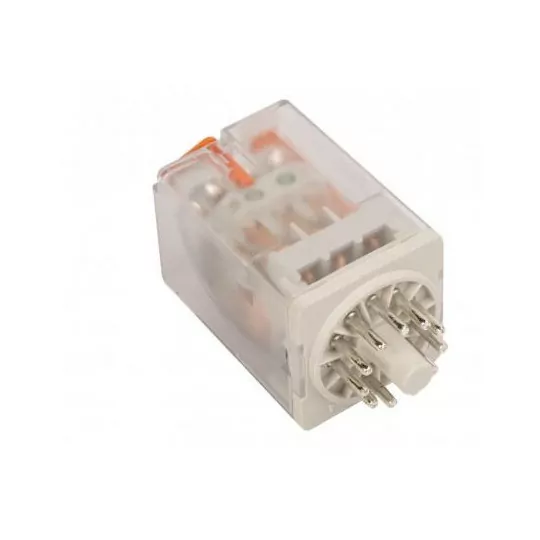

Industrial relay 3P 10A 230V R15-2013-23-5230-WTL Relpol

Product description

Industrial relay is another quite often forgotten component, which, however, can significantly facilitate the work of any electrical engineer. It is used for industrial machines with high current voltages. This model of relay consists mainly of only two components. The first is the coil and the next is the contacts. In order for the correct contacts to do their "on-off" work, the coil must first be set. To set the coil is to connect the appropriate line voltage to it. The current flowing through the coil creates a magnetic field to attract the steel valve, which is what opens the contact in question.

Relay RUC-M, is a design for high electrical loads. It is an industrial relay with a permanent magnet, whose magnetic field blows an electric arc between the contacts. This relay model can be used for sockets as well as for circuits.

Technical data:

• Drive switching mode: magnetic residual
• Degree of protection (IP):IP40
• Drive polarity: Unpolarized
• Number of switching contacts: 3
• Width [mm]: 35
• Complete with socket: No
• Rated control voltage Us for AC 60 Hz [V] up to: 230
• Height [mm]: 35
• Depth [mm]: 54.4
• Rated control voltage Us for AC 50 Hz [V] from: 230
• Rated control voltage Us for AC 50 Hz [V] to: 230
• Rated control voltage Us for AC 60 Hz [V] from: 230
• Rated control voltage Us for DC [V] from: 0
• Rated control voltage Us for DC [V] to: 0
• Type of control voltage: AC
• With detachable terminals: No
• Electrical connection type: Plug-in connection
• Number of NO contacts: 0
• Number of normally closed contacts: 0
