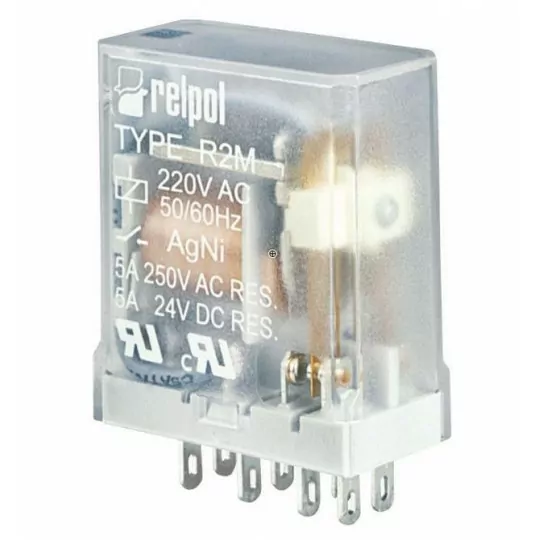

Industrial relay 2P 5A 230V R2M-2012-23-5230 RELPOL

Product description

Industrial relay is another quite often forgotten component, which, however, can significantly facilitate the work of any electrical engineer. It is used for industrial machines with high current voltage. This model of relay consists mainly of only two components. The first is the coil and the next is the contacts. In order for the correct contacts to do their "on-off" work, the coil must first be set. To set the coil is to connect the appropriate line voltage to it. The current flowing through the coil creates a magnetic field to attract the steel valve, which is what opens the contact in question.

Relay RUC-M, is a design for high electrical loads. It is an industrial relay with a permanent magnet, whose magnetic field blows an electric arc between the contacts. This relay model can be used for sockets as well as for circuits.

Technical data:

• number and type of contacts: 2P (changeover)
• degree of protection of the housing IP: 40
• method of connection: to sockets
• rated coil voltage: 230 V AC
• coil resistance: 21470 Ω (at 20 °C)
• tolerance of coil resistance: ± 10%
• operating voltage range of coil supply: 184 V AC / 253 V AC minimum / maximum (at 20 / 55 °C)
• rated AC contact voltage: 250 V
• maximum AC contact voltage: 250 V
• minimum contact voltage: 5 V
• minimum contact current: 5 mA
• permanent contact current capacity: 5 A
• maximum switching power AC1: 1250 VA
• minimum switching power: 0.3 W
• maximum switching frequency at rated load AC1: 1200 cycles/hour
• maximum no-load switching frequency:36000 cycles / hour
• rated coil power consumption: 1.2 VA
• rated insulation voltage: 250 V AC
• rated surge voltage: 2500 V 1.2 / 50 μs
• overvoltage category: II
• switching durability AC1: > 2 x¹⁰⁵ 5 A, 250 V AC
• mechanical durability (cycles): >¹⁰⁷
• dimensions: 27.5 x 14 x 32.9 mm
• ambient (storage) temperature: -40 to +70 °C
• ambient (working) temperature: -40 to +55 °C
• vibration resistance: 5 g 10 - 150 Hz
• maximum temperature of the soldering bath: 270 °C
