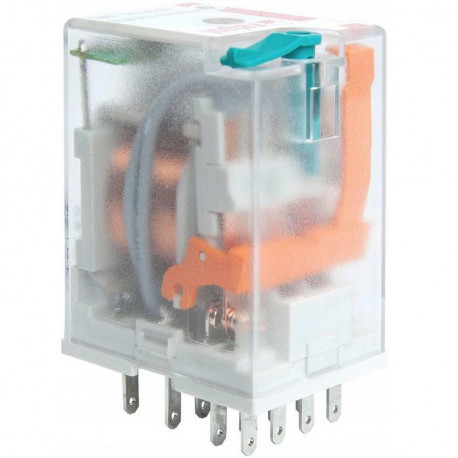

Industrial relay 4P 6A 24V DC R4-2014-23-1024-WTL

Product description

Industrial relay is another quite often forgotten component, which, however, can significantly facilitate the work of any electrical engineer. It is used for industrial machines with high current voltages. This model of relay consists mainly of only two components. The first is the coil and the next is the contacts. In order for the correct contacts to do their "on-off" work, the coil must first be set. To set the coil is to connect the appropriate line voltage to it. The current flowing through the coil creates a magnetic field to attract the steel valve, which is what opens the contact in question.

Relay RUC-M, is a design for high electrical loads. It is an industrial relay with a permanent magnet, whose magnetic field blows an electric arc between the contacts. This relay model can be used for sockets as well as for circuits.

Technical data:

• With forced contact routing: No
• Complete with socket: No
• Degree of protection (IP): IP40
• Number of changeover contacts: 4
• Height [mm]: 27,5
• Depth [mm]: 35,6
• Contact type: Single
• Rated control voltage Us for AC 50 Hz [V] from: 24
• Rated control voltage Us for AC 50 Hz [V] up to: 24
• Rated control voltage Us for AC 60 Hz [V] from: 24
• Rated control voltage Us for AC 60 Hz [V] up to: 24
• Drive polarity: Unpolarized
• Width [mm]: 21,1
• Drive switching mode: Magnetic residual
• Control voltage type: AC
• With detachable terminals: No
• Electrical connection type: Plug-in connection
• Number of NO contacts: 0
• Number of normally closed contacts: 0
