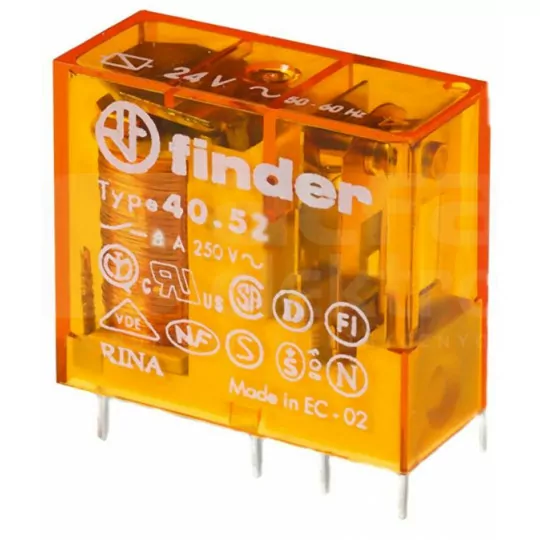

Miniature relay 2P 8A 230V 40.52.8.230.0000 FINDER

Product description

Miniature relay has a wide range of applications in the category of electronic fuse. This product is made of the highest quality materials, so it is resistant to any damage, both mechanical and technical. This device can be used in electrical installations such as lighting, small household appliances and twilight tools.

This model of relay mainly consists of only two components. The first is the coil and the next is the contacts. In order for the correct contacts to do their "on-off" work, the coil must first be set. To set the coil is to connect the appropriate line voltage to it. The current flowing through the coil creates a magnetic field to attract the steel valve, which is what opens the contact in question.

Technical data:

• Depth 29 mm
• Number of changeover contacts 2
• Number of normally closed contacts 0
• Number of normally closed contacts 0
• Width 12.4 mm
• Height 25 mm
• Rated control voltage Us for AC 50 Hz 230 - 230 V
• Rated control voltage Us for AC 60 Hz 230 - 230 V
• Complete with socket No
• Type of control voltage AC
• Type of electrical connection Other
• Degree of protection (IP) IP20
• With positive contact routing No
• Drive switching mode Monostable
• With detachable terminals No
• Contact type Single
• Drive polarity Non-polarized
