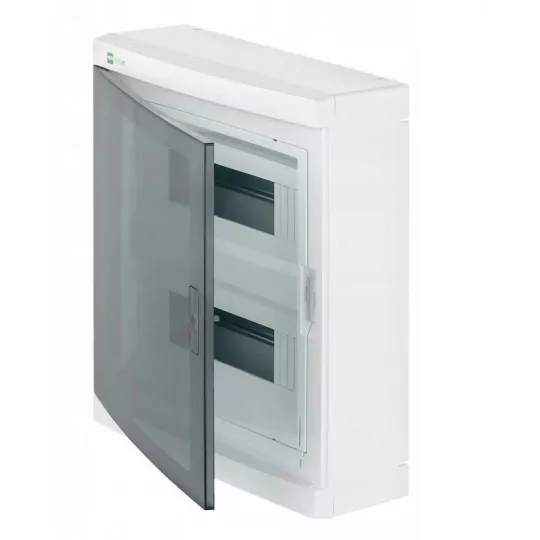

Modular surface-mounted switchboard 2x12 Elegant Elektro-Plast Nasielsk

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• Switchgear ELEGANT RN 2x12 PE+N IP40 WHITE
• Type: RN 2x12
• from 5- to 54-module
• 1-,2- or 3-row (12 modules in a row, in 1-row also 5, 8 and 18 modules in a row)
• Class II insulation
• Degree of protection IP40
• white door in the color of the enclosure
• rack system of removable DIN rails
• PE+N terminals as standard
• N 1x(4x16mm? + 4x10mm?) L8+L5
• PE 1x(7x10mm? + 6x 16mm?) L13
• N terminal L5 on the rail
• STANDARD: PN-EN 61439-3:2012, PN-EN 61439-1:2011
• Dimensions: 350x310x104 mm
