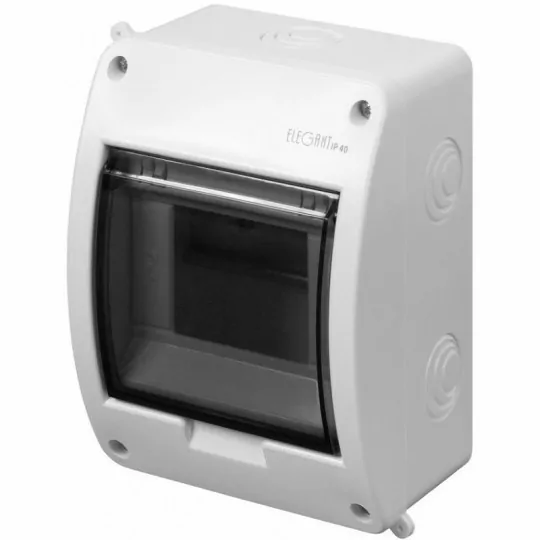

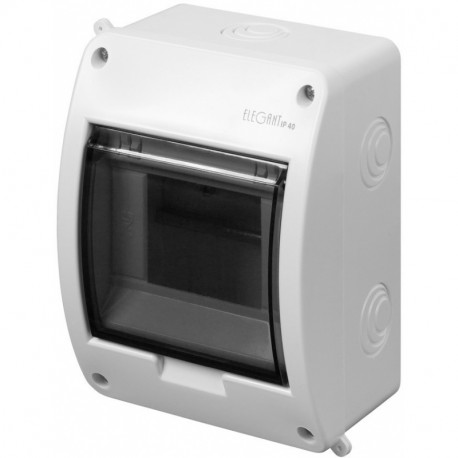

Modular switchgear RN-nt 1x5 surface-mounted ELEGANT 2401-01 ELEKTRO-PLAST Nasielsk

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the housing are embossed for easy insertion of cables or conduits.

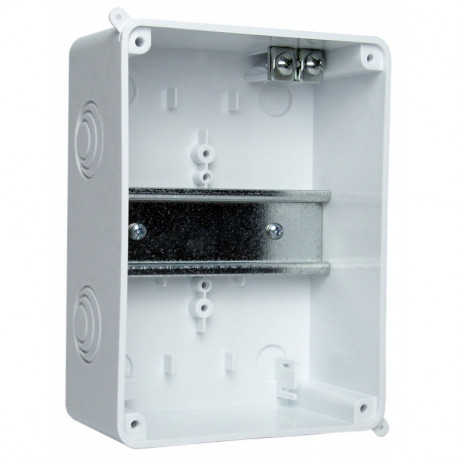

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• Color White
• Width [mm] 116
• Housing material Plastic
• DIN rail: YES
• Mounting depth [mm] 0
• Expandable: NO
• RAL 9003 number
• Degree of protection (IP) IP40
• With mounting plate: NO
• Cover type Closed
• Height [mm] 156
• Mounting method Surface mounting
• With transparent cover: YES
• Depth [mm] 93
• Width expressed in number of modules 5
• Number of rows 1
