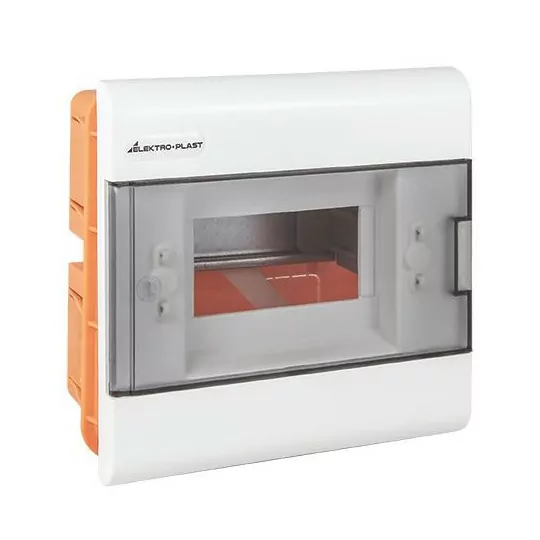

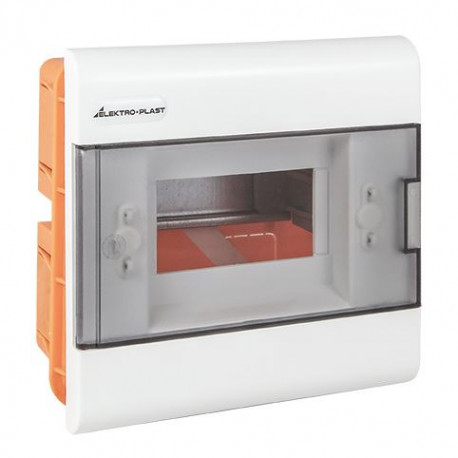

Modular switchgear 1x6 flush-mounted SRp IP40 SRp-6 2.1 ELEKTRO-PLAST Opatówek

Product description

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• Expandable: NO
• Width expressed in number of modules 6
• Degree of protection (IP) IP40
• With mounting plate: NO
• Cover type Closed
• Number of rows 1
• Mounting method Flush mounting
• With transparent cover: YES
• Mounting depth [mm] 74
• Color White
• RAL 9003 number
• Housing material Plastic
• DIN rail: YES
