Rozdzielnica modułowa 1x6 nadtynkowa IP65 RH-6 36.6 ELEKTRO-PLAST OPATÓWEK

Product description

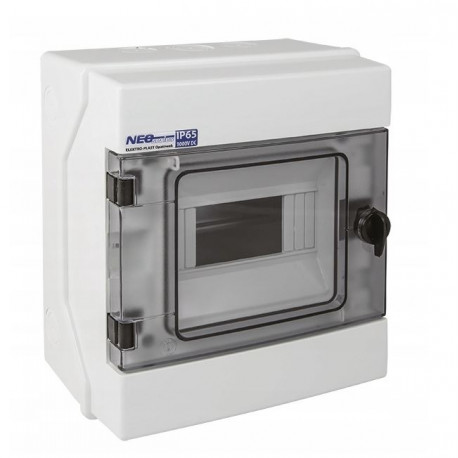

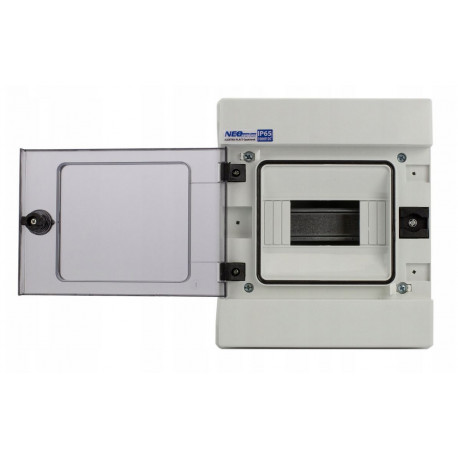

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

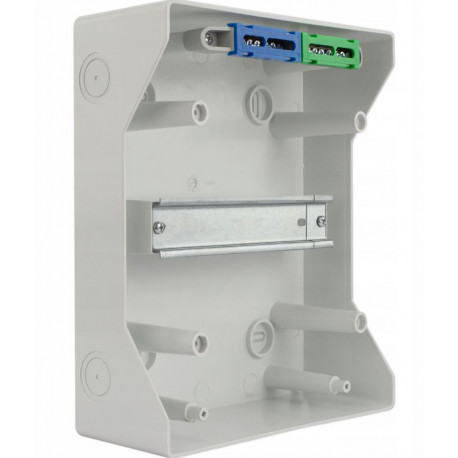

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• stability of operation from -25oC to +60oC,
• possibility to install apparatuses with a depth of 68 and 75mm,
• Catalog no.: 36.6
• Symbol: RH-6
• Type: 1 x 6
• N+PE terminals: yes
• Width: 225 mm
• Height: 260 mm
• Depth: 138 mm
