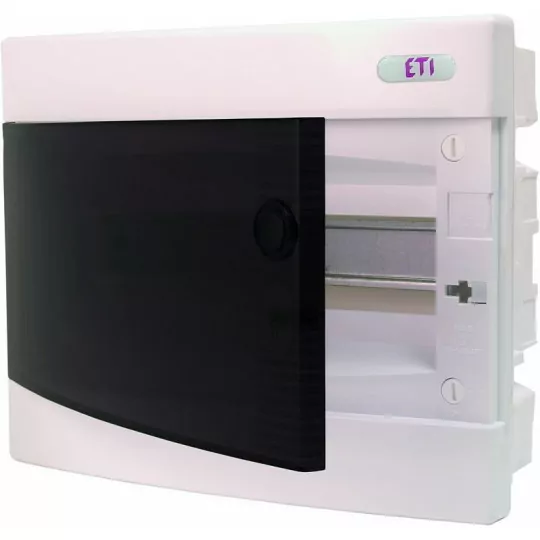

Modular switchboard 1x12 flush-mounted IP40 ECM12PT DIDO ETI

DIDO ETI's 1x12 ECM12PT modular switchgear is suitable for flush-mounted installation, which is not complicated, and this is why installers often opt for this particular product. The task of the switchgear is to protect the modular apparatus installed in it. It is recommended to install the product indoors. EMC12PT 001101011 by Eti-Polam. This guarantees the high quality and durability of the presented product, as well as its excellent performance.

The switchboard is made of plastic. The described product can be mounted on plasterboard walls. The door of the switchboard is transparent, which allows you to control the status of modular apparatus. Inside the product you will find an N+PE terminal strip and a TH rail, on which apparatus is installed. On one row, which the switchboard is equipped with, it is possible to install up to 12 modules of apparatus. The manufacturer provides a degree of protection IP40. The dimensions of the switchboard are as follows: 232 x 283 x 70 mm.

Technical data:

• Ean 3838895456766
• Degree of protection (IP) IP40
• With mounting plate: NO
• Cover type: Closed
• Mounting method: Flush mounting
• With transparent cover: YES
• Mounting depth [mm] 70
• Height [mm] 232
• Width [mm] 283
• RAL 9003 number
• Depth [mm] 70
• Width expressed in number of modules 12
• Color White
• Number of rows 1
• Housing material Plastic
• DIN rail: YES
• Expandable: NO
