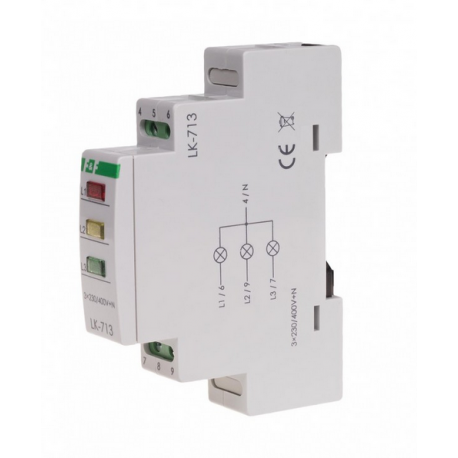

Signal Light 3-color LK-713K F&F

Product description

Signaling lamp LK-713 is used to visually signal the presence of voltage in individual phases of a 3-phase network. The presence of voltage in a phase is indicated by the illumination of the corresponding LED included in the circuit of this phase.

Technical data:

• Supply voltage: 3×230 V+N

• Power supply control: 3 × LED (8×4 mm)

• LED colors: yellow-red-green

• Rated current: 1.7 mA

• Connection; 2.5 mm2 screw terminals

• Tightening torque: 0.4 Nm

• Power consumption: 1.1 W

• Operating temperature: -25 ÷ 50 °C

• Dimensions: 1 module (18 mm)

• Mounting: on 35 mm rail

• Degree of protection: IP20
