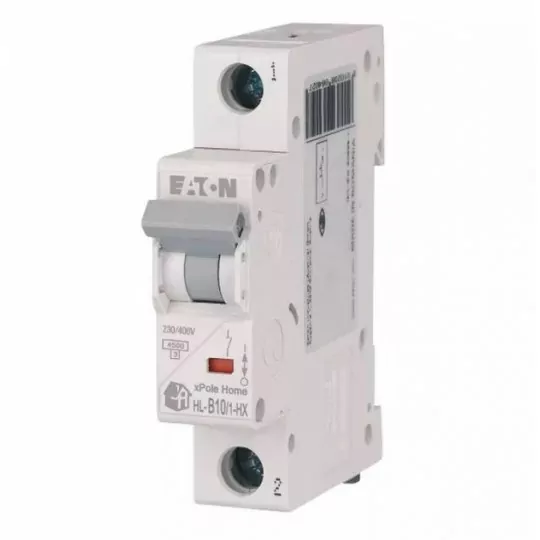

1P B 10A AC overcurrent circuit breaker HN-B10/1 Eaton

Product description

An overcurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as electrical appliances in households.

Technical data:

• trip characteristic: B
• frequency: 50-60 Hz
• installation depth: 70,5000 mm
• simultaneously disconnected N pole: no
• overvoltage category: 3
• energy limitation class: 3
• total number of poles: 1
• number of poles: 1
• possibility of additional equipment: yes
• rated voltage: 230 V
• rated current: 10 A
• voltage type: AC
• pollution degree: 2
• width expressed in number of modules: 1
• degree of protection: IP 20
