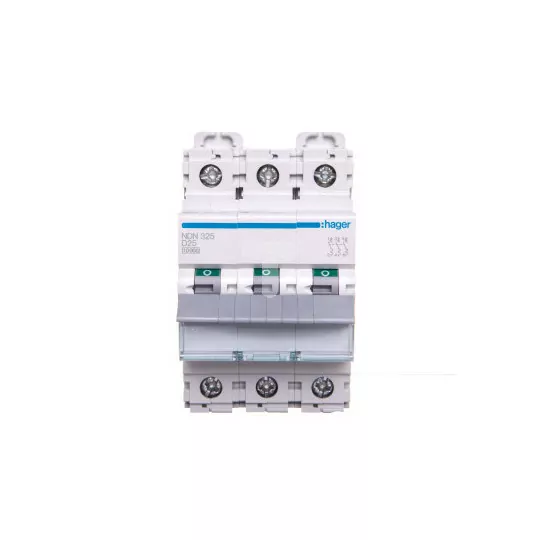

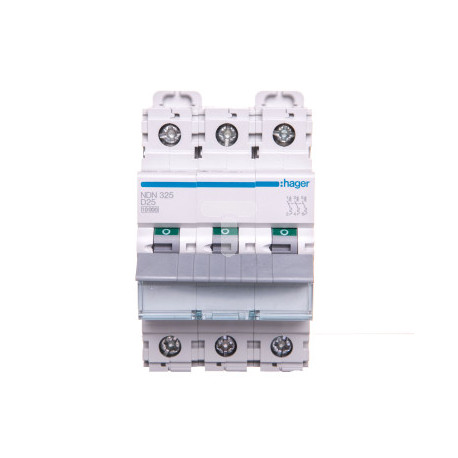

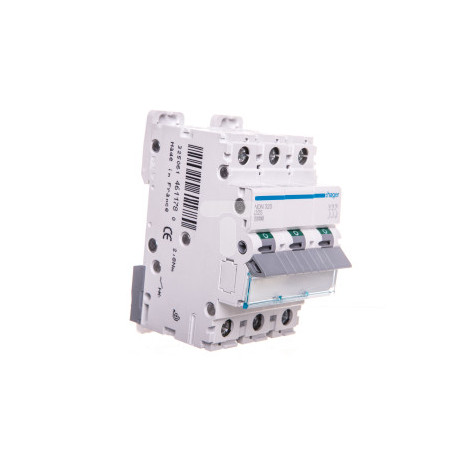

NDN325 D 25A 10kA overcurrent circuit breaker Hager

Product description

Short-circuit protection for electrical installations can also serve as a means of protection against electric shock - automatic shutdown in the event of a short circuit of negligible impedance between a line conductor and an accessible conductive part or protective conductor. HAGER is a leader in the energy market with customers in more than 95 countries around the world.

The company's main features are innovation and systematic development of products and systems. The brand is associated with excellent quality and the pursuit of perfection. Invariably, new design patterns and improvements have been introduced over the years to surprise customers and fully meet their expectations. While implementing innovations and new technologies, the company does not forget about interesting design.

Technical data:

• Degree of protection (IP): IP20
• Possibility of additional equipment
• Embedded depth [mm]: 70
• Width expressed in number of modules: 3
• Frequency [Hz]: 50
• Energy limitation class; 3
• Voltage type; AC
• Rated short-circuit switching capacity according to IEC 60947-2 [kA]; 15
• Rated short-circuit switching capacity according to EN 60898 [kA]; 10
• Rated voltage [V] 2: 400
• Rated current [A]: 25
• Number of poles: 3
• Tripping characteristic: D
