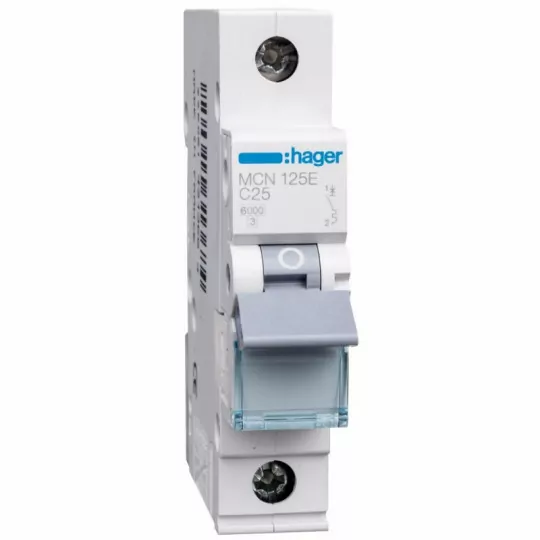

MCN125E Hager 1P C25A overcurrent circuit breaker

Product description

An overcurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of the installation, as well as household electrical appliances. It is designed for repeated use. HAGER is a leader in the energy market with customers in more than 95 countries around the world.

The company's main features are innovation and systematic development of products and systems. The brand is associated with excellent quality and the pursuit of perfection. Invariably, new design patterns and improvements have been introduced over the years to surprise customers and fully meet their expectations. While implementing innovations and new technologies, the company does not forget about interesting design. In its products, Hager guarantees simple installation, ease of use, intuitive interface, modular structure and durability. Components and solutions are manufactured at Hager's 23 production facilities around the world .

Technical data:

• Rated current In: 25 A
• Type of overcurrent circuit breaker: C
• Rated short-circuit switching capacity Icn: 6 kA
• Number of poles: 1 P
• Number of modules: 1
• Rated insulation voltage Ui: 500 V
• Rated frequency: 50/60 Hz
• Connection type: with screw
• Tightening torque: 2.8Nm
• Total power loss for rated current: 3 W
• Electrical endurance (Number of cycles): 4000
• Mechanical endurance (Number of cycles): 20000
• Operating temperature: -25 to 60 °C
• Storage temperature: -25 to 80 °C
• Installed product height: 83 mm
• Width of installed product: 17.5 mm
• Depth of installed product: 70 mm
