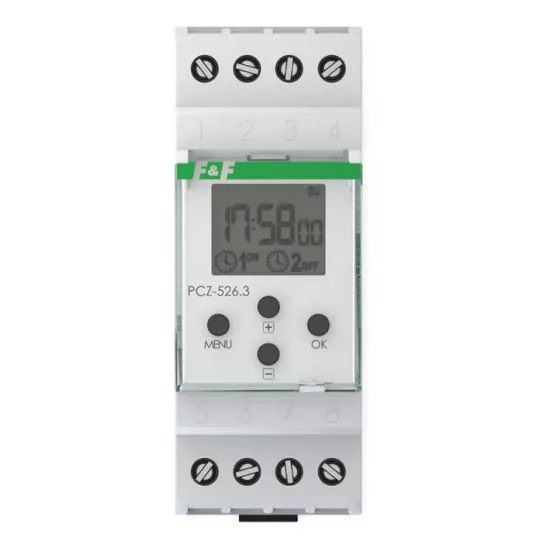

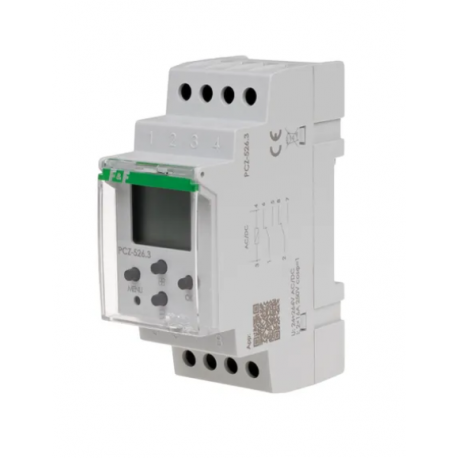

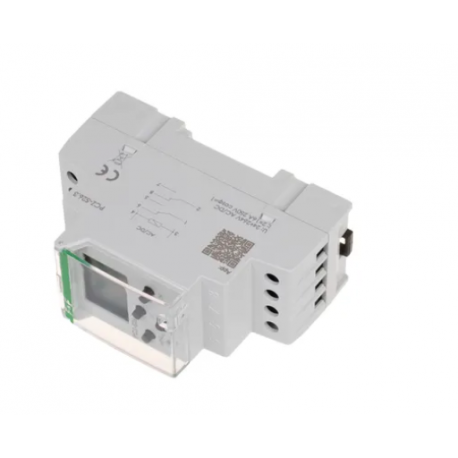

PCZ-526 F&F digital 2-channel astronomical clock

Product description

PCZ-525 astronomical timer is, simply put, a twilight sensor. It is used in outdoor lighting. The sensor has the ability to use the function of switching off the lighting for a given hour or a given time period throughout the night. The exact time of switching on and off is determined by calculating the position of the sun relative to the horizon. The astronomical clock, on the basis of information about the current date, geographical coordinates of the place where it is installed, automatically determines daily programmed points of switching on and off the lighting. Of course, you can also set your own time for switching on and off the outdoor lighting.

The controller is equipped with a battery status control that maintains the operation of the timer in the absence of the main power supply. If the battery is low, the user will be notified to replace it. By changing the contrast of the display, the LCD can be read clearly for different viewing angles. The product has the ability to read and save the timer configuration wirelessly via an Android phone equipped with an NFC communication module. A free phone app is available on Google play.

Specifications:

• Power supply: 24÷264V AC/DC
• Load current: 2×[<16A]
• Contact: 2×[1×NO/NC] separated
• Timer's sustained operation time (for T=20°C): 6 years
• Display operating sustain time: none
• Time error: ±1s/24h
• Accuracy of program time setting: 1min.
• Power consumption: 1,5W
• Operating temperature range: -20°C...50°C
• Dimensions: 2 modules (35mm)
• Mounting: on TH-35 rail
• IP20
