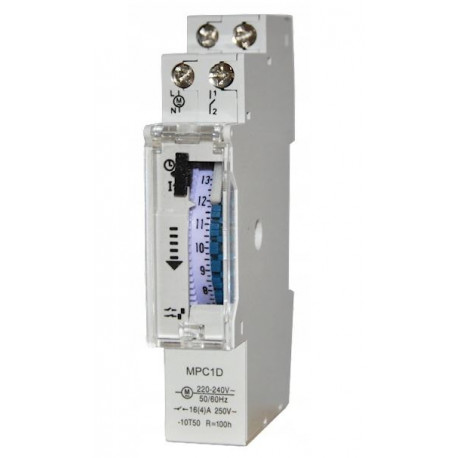

DIN MPC1D ELS analog 1-day timer

Product description

The timer programmerallows building groups of relays consisting of a minimum of 2 units. Each controller in the group can be controlled independently using the local control input. If too many illuminated buttons are connected, there may be spontaneous switching of lighting or switching of lighting permanently.

The contact current given in the technical data is a maximum value and may be subject to limitations. If the information provided shows that the relay in the device is insufficient, it is recommended to use an external switching element (e.g. contactor) suitable for switching high surge currents. The device has the ability to set the hours of operation in daily mode. This means that each day we have the ability to set the working time of the programmer on the hours selected for us.

Technical data:

• rated voltage: 230V AC 50/60Hz
• rated current: 10A
• maximum load: 2200W
• adjustable accuracy: 15 minutes/25h
• number of programs per day: 96 latches
• mounting: TH35 rail
