Technical information
Product description

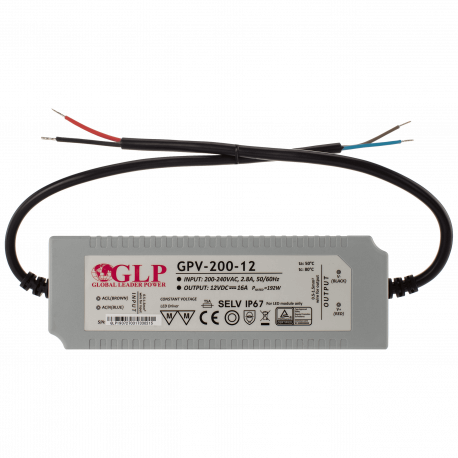

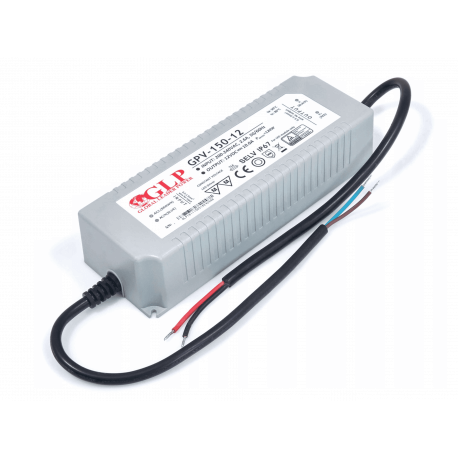

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. GPV-200-12 power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. As a result, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.
What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.
Input
- Input voltage range: 180~264VAC
- Input voltage frequency range: 47 ~ 63Hz
- Efficiency: 82%
Output
- Rated voltage: 12V
- Rated current: 16A
- Output current range: 0~16A
- Rated power: 192W
Protections
- Overcurrent (overload) protection: YES
- Short circuit protection: YES
Working environment
- Operating temperature: -30°C ÷ 70°C
- Ambient humidity: 20 ~ 90% RH non-condensing
- Storage temperature: -40°C ÷ 80°C, 10 ÷ 95% RH(non-condensing) Temperature coefficient ± 0.03% / °C (0°C ÷ 50°C) Vibration resistance 10 ÷ 500Hz, 2G, 10min / periodically for 60min. along X, Y, Z axis
Safety standards
- Safety standards: Compliance with EN61347-1, EN61347-2-13, IP67
- Insulation resistance: I/O: 3kVAC
- EMC standards: Compliance with EN55015
Other
- Housing material: plastic

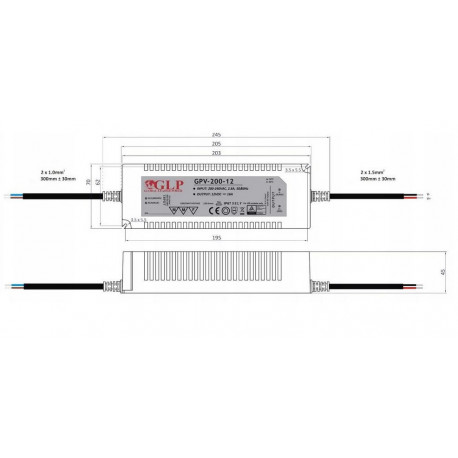

- Dimensions (L x W x H): 205 x 70 x 45 mm
- Weight: 1.2kg
