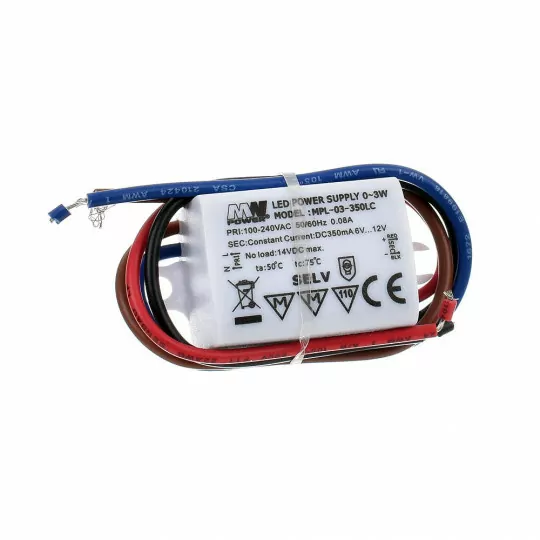

Switching power supply MPL-03-350LC 6-12V 3W MW POWER

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection they are ideal for outdoor systems, which are particularly exposed to changing weather conditions or increased humidity. MW POWER power supply is distinguished by high quality workmanship. The housing was made of the best materials available on the market. This makes it resistant not only to the aforementioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.

Specifications:

• Input voltage range 90 ~ 264 VAC
• Input voltage frequency range 47 ~ 63 Hz
• 65% efficiency
• Input current 0.08A / 230VAC
• Rated voltage 12VDC
• Rated current 350mA
• Rated power 3W

• Short-circuit / overload protection
• Operating temperature -10°C - +50°C
• Dimensions 53*37*26*21
