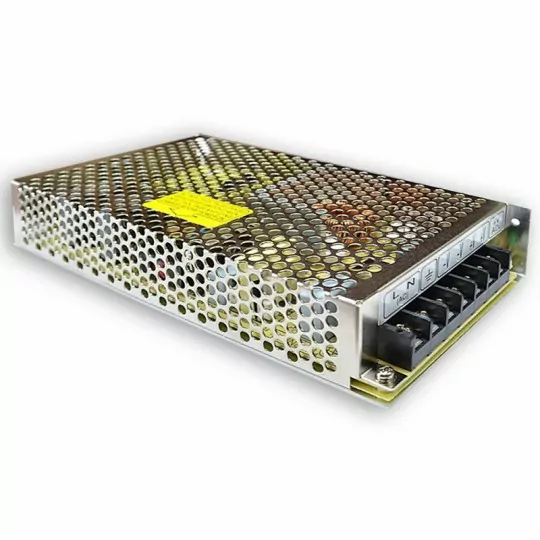

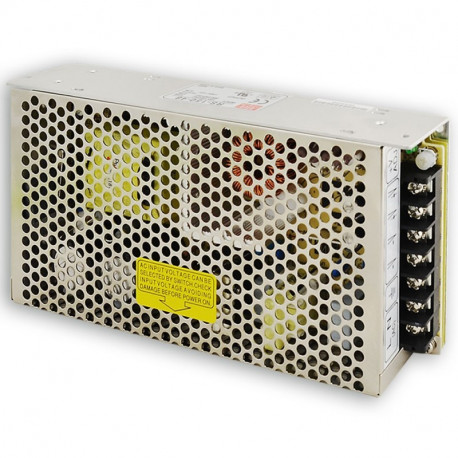

Modular power supply 150W 48V IP20 MW POWER

Voltage power supply is a switch mode product characterized by low power consumption at rest and high efficiency reaching 86%. The aluminum housing and small dimensions allow the device to be installed even in hard-to-reach places. It is designed to power LED lighting, work in industrial automation systems, machine control. It is also used in industrial electronics. It has a number of protections such as short-circuit, overload and overvoltage protection which guarantee trouble-free operation.

Technical data:

• Rated supply voltage for AC 50 Hz [V] from 88
• Stabilized no
• Rated supply voltage for AC 50 Hz [V] up to 132
• Direct mountable no
• Modular version no
• Rated supply voltage for AC 60 Hz [V] from 88
• Degree of protection (IP) IP20
• Short-circuit proof yes
• Rated supply voltage for AC 60 Hz [V] up to 132
• Width [mm] 199
• Can be mounted on a rail no
• Suitable for security applications no
• Rated supply voltage for DC [V] from 176
• Output voltage 1 [V] 48
• Maximum output current 1 [A] 3.3
• Height [mm] 98
• Rated supply voltage for DC [V] up to 264
• Supply voltage type AC/DC
• Output voltage setting range yes
• Depth [mm] 38
• Output voltage 1 [V] from 45.6
• Stabilized output voltage no
• Output voltage 1 [V] up to 52.8
• Possibility of wall mounting
• Type of electrical connection Screw connection
