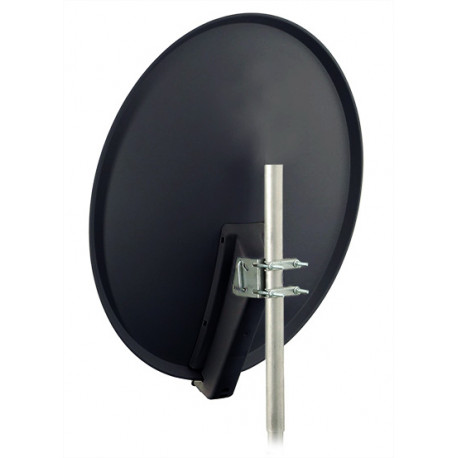

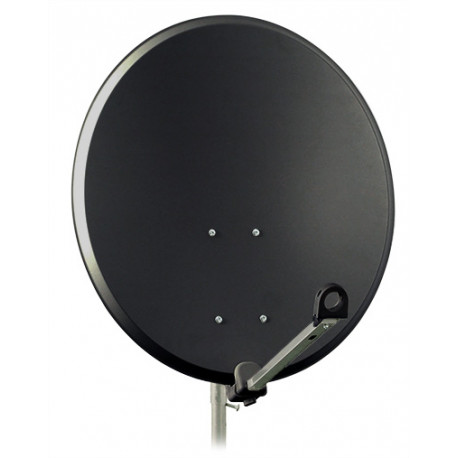

Satellite dish canopy 80cm graphite steel A9654 DIPOL

Product description

Satellite antenna otherwise known as offset antenna designed to receive satellite signals from one or two satellites (squaring arrangement). The antenna has the dimensions given below in the technical data sheet of this product. The antenna is made of top quality lacquered steel in dark gray color. The strength of the steel is very high. The material from which the antenna is made generally has no effect on the quality of the received signal. However, it is important because of the durability of the purchased equipment.

This product comes with all the necessary components for its installation. This is the optimal antenna for reception in Poland from the Astra and Hotbird satellites. It is suitable for mounting Monoblock converters.

Technical specifications:

• Purpose satellite
• Offset type
• Brand FAMAVAL
• Color dark graphite
• Designation RAL 7035
• Application outdoor
• Reflector material galvanized steel,
• powder-coated
• thickness mm 0.7
• dimensions mm 795x730 (D)
• Gain 11.7 GHz dBi 37.5
• for 12.7 GHz dBi 38.3
• Focal length f mm 521
• Elevation angle degrees 17...58
• F/D ratio 0.64
• Diameter of the converter mm 40
• Max. diameter of mast mm 60
• External dimensions mm 845x779
• Weight kg 1.8
