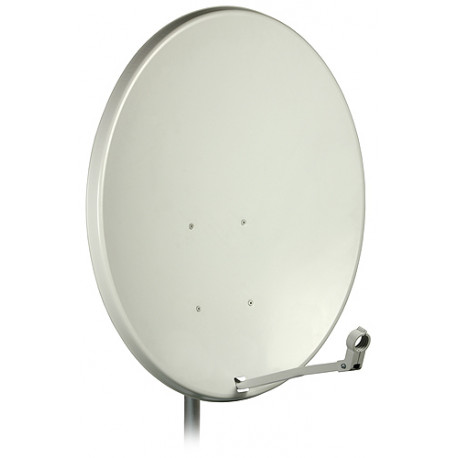

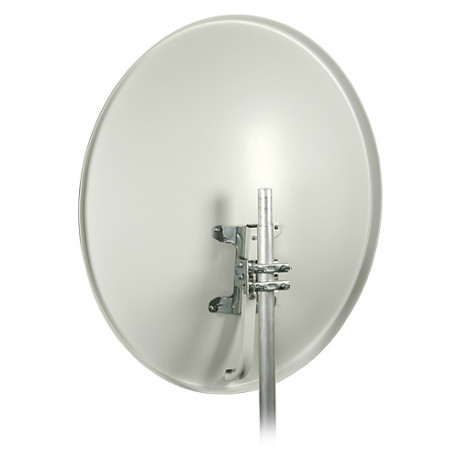

Satellite dish 90cm canopy white steel COR-900 A9607 DIPOL

Product description

Satellite antenna otherwise known as offset antenna designed to receive satellite signals from one or two satellites (squaring arrangement). The antenna has the dimensions given below in the technical data sheet of this product. The antenna is made of the highest quality white lacquered steel. The strength of the steel is very high. The material from which the antenna is made generally has no effect on the quality of the received signal. However, it is important because of the durability of the purchased equipment.

This product comes with all the necessary components for its installation. This is the optimal antenna for reception in Poland from the Astra and Hotbird satellites. It is suitable for mounting Monoblock converters.

Technical specifications:

• External dimensions of the reflector [mm]948 x 844
• Offset angle [deg] 27.77
• Focal length (f ) [mm] 393
• F/D ratio 0.49
• Energy gain at 10.7 GHz [dB] 38.8
• Energy gain for 11.7 GHz [dB] 39.1
• Energy gain for 12.75 GHz [dB] 41.2
• Azimuth angle adjustment range [°] 0-180
• Elevation angle adjustment range [°] 5-80
• Mast diameter [mm] 32-60
• Reflector plate thickness [mm] 0.6
• Converter mount [mm] 40
• Operational wind speed [km/h] 98
• Maximum wind speed [km/h] 123
• Weight [kg] 5
