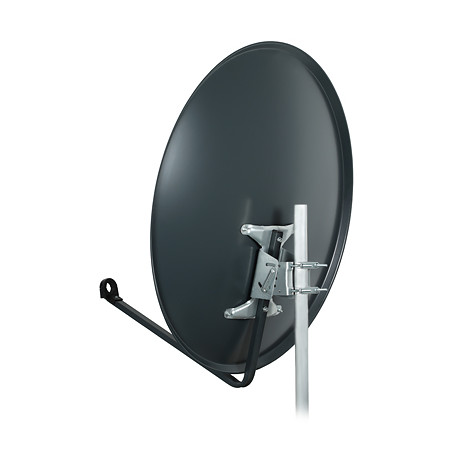

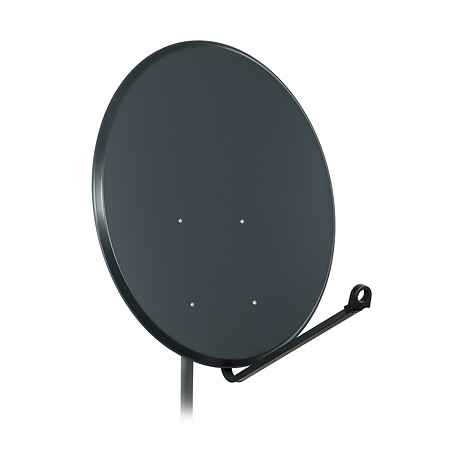

Satellite dish 100cm canopy steel gray A9665 FAMAVAL DIPOL

Product description

Satellite antenna otherwise known as offset antenna designed to receive satellite signals from one or two satellites (squaring arrangement). The antenna has the dimensions given below in the technical data sheet of this product. The antenna is made of top quality graphite colored painted steel. The strength of the steel is very high. The material from which the antenna is made generally has no effect on the quality of the received signal. However, it is important because of the durability of the purchased equipment.

This product comes with all the necessary components for its installation. This is the optimal antenna for reception in Poland from the Astra and Hotbird satellites. It is suitable for mounting Monoblock converters.

Technical specifications:

• External dimensions mm 980x1030
• Reflector dimensions mm 900x948
• Focal length mm 663
• Maximum diameter of the mast mm 60
• Converter neck diameter mm 23/40
• Elevation angle range degrees 10.5/53.5
• Reflector material type steel
• Reflector thickness mm 1,1
• Reflector weight kg 4,7
• Color graphite
• Mounting to mast steel
• Mounting type Azimuth-Elevation
• Mounting weight kg 3,3
• Gain at 11.50 [GHz] dB 39.5
• Gain at 12.75 [GHz] dB 40.5
