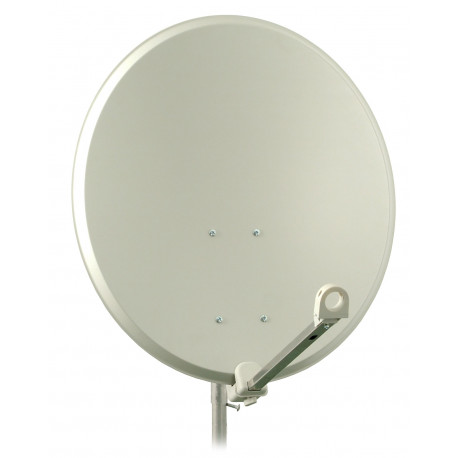

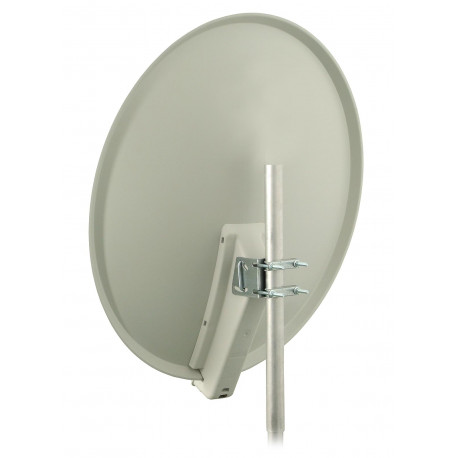

Antenna sat dish 80cm white steel FAMAV SP30 A9653

Product description

Satellite antenna otherwise known as offset antenna designed to receive satellite signals from one or two satellites (squaring arrangement). The antenna has the dimensions given below in the technical data sheet of this product. The antenna is made of top quality white lacquered steel. The strength of the steel is very high. The material from which the antenna is made generally has no effect on the quality of the received signal. However, it is important because of the durability of the purchased equipment.

This product comes with all the necessary components for its installation. This is the optimal antenna for reception in Poland from the Astra and Hotbird satellites. It is suitable for mounting Monoblock converters.

Technical specifications:

• External dimensions 845x779 mm
• Internal dimensions (reflector) 795x730 mm
• Focal length 521 mm
• Maximum diameter of the mast 60mm
• Converter diameter 40mm
• Elevation angle range 17 - 58 degrees
• Reflector material
• galvanized steel,
• powder coated
• Thickness of steel sheet 0,7mm
• Weight of the antenna 3,05kg
• Finishing elements polyester/polypropylene
• Antenna color RAL 7035
• Effectiveness 71%
