TV antenna 16/21-69 DVB-T + amplifier Dipol

Product description

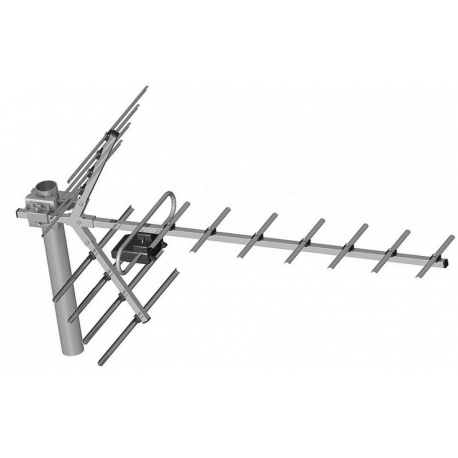

The outdoor TV antenna is designed to receive analog and digital DVB-T signals broadcast from terrestrial transmitters. The main advantage of the antenna is its small size and, above all, the signal gain, which is provided by the built-in antenna amplifier up to 42 dBi. Mounting the antenna is very simple consisting only in attaching the bracket with two screws. The antenna cable is attached to it with an F-connector.

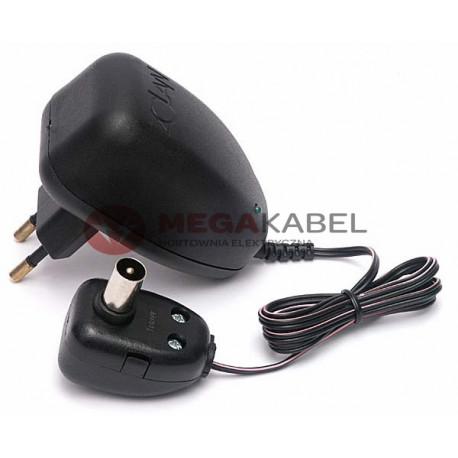

The antenna is made of aluminum and galvanized steel structural elements, which ensure long life and stable operation in all weather conditions. The antenna has a box in which there is a high-quality 30 dB LNA-177 amplifier, and a 230V AC adapter included.

Technical specifications:

• Channels: 21-69
• Gain: 42 dBi
• Standing wave ratio: 1,1 - 3
• Polarization: H, V
• Forward/rearward radiation pattern: 19 - 26 dB
• Impedance: 75 ohm
• Number of elements: 16
• Length: 0.89 m
