Product description

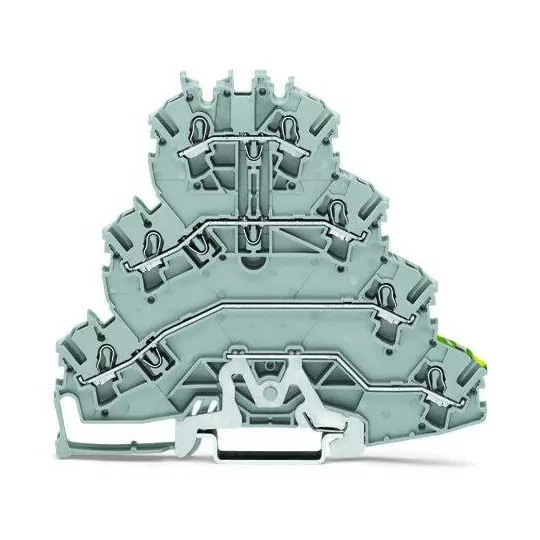

Rail connectors are commonly known as zugs. Their main task is to connect wires in building switchgear. It is to them that during the prefabrication of the switchgear the inputs and outputs from electrical apparatus are led out. They are most often mounted on the highest DIN/Euro/TS-35 rail. They are used to connect: wire and cable conductors, for medium and low voltages.
Electrical circuits are connected straight to the rail connectors according to the guidelines and markings on the connectors, which significantly speeds up the installation of the switchgear. Rail connectors are the assurance of fast and stable connection.
Technical data:
- Rated voltage [V] 2:800
- Cross section of the connected single-wire conductor [mm2] to: 4
- Cross section of connected single-wire conductor [mm2] from: 0.25
- Cross section of the connected bare wire conductor [mm2] up to: 4
- Cross section of the connected wire conductor without sleeve end [mm2] from: 0.25
- Cross section of connectable wire with sleeve end [mm2] up to: 4
- Cross section of connectable wire with sleeve end [mm2] from: 0.25
- Rated current In [A]: 25
- Electrical connection type 1: Self-clamping plug-in
- Electrical connection type 2: Self-clamping plug-in.
- Mounting method: DIN 35 mm mounting rail
- Height at lowest mounting method [mm]: 96.8000
