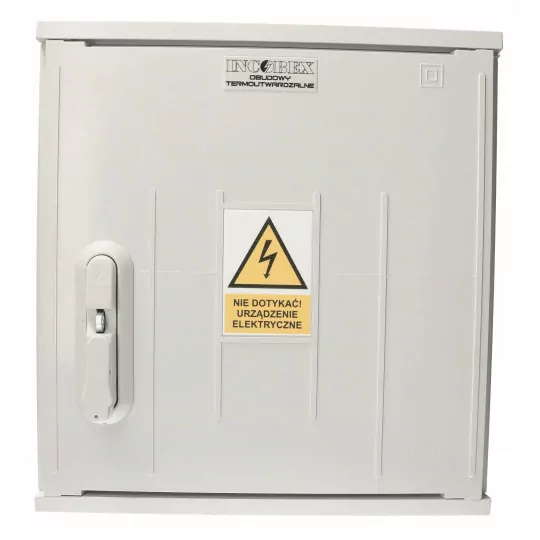

Measurement connector ZP-1-2LZ C IRA-030306-2 Incobex

Product description

Meteringconnector is used for the installation of electrical circuits-most often metering circuits. It is an additional protection of the entire installation circuit. The product is made of excellent quality materials and, in addition, the housing is thermo-hardened. This is another protection of the installation. Metering covers are used in single-family homes as well as public places. Metering cable connectors have a dual function - they provide the possibility of a safe connection between the building (object) and the power grid, and also, thanks to the possibility of mounting a meter, the measurement of transported energy.

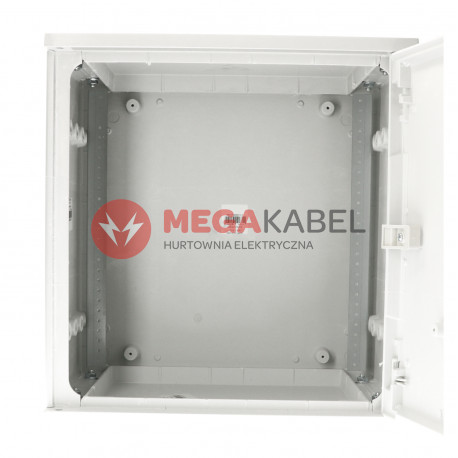

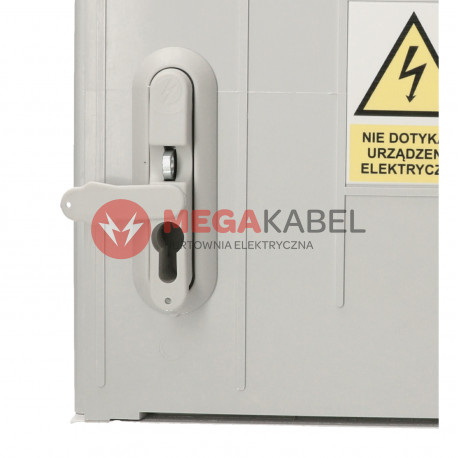

The product is made of plastic and the addition of fiberglass. It is a durable and robust construction that will protect the installation even for several years. The housing is closed with a padlock or a classic lock. Both of these are not included with the housing. There are no connection elements inside the housing.

Technical data:

• Depth [mm]: 250
• Number of CEE 16 A / 400 V / 5P sockets: 0
• Number of CEE sockets 32 A / 400 V / 5P: 0
• Number of CEE 63 A / 400 V / 5P sockets: 0
• Number of sockets with protective contact: 0
• Number of meter boards: 1
• Model: junction box
• Rated voltage (value): 230/400 V
• Rated current [A]: 160
• Rated current of main circuit breaker [A]: 160
• Product series: ZP
• Degree of protection (IP): IP44
• Width [mm]: 400
• Main switch: NH00
• Residual current circuit breaker: No
• Height [mm]: 580
